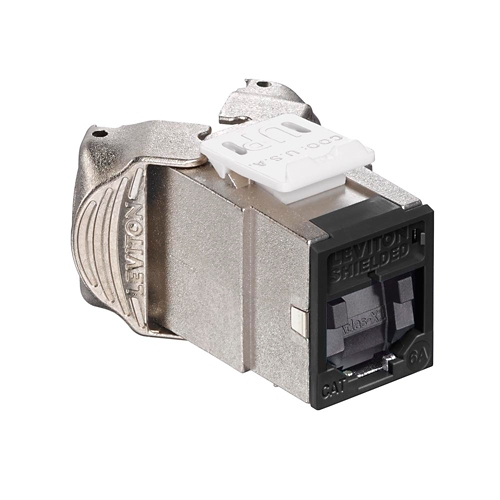

Atlas-X1™ Cat 6A Shielded QUICKPORT™ Jack with Shutters, Component-Rated, Tool Free | Black

The ATLAS-X1 Category 6A Component-Rated Shielded QUICKPORT Jack supports 10GBASE-T networks. The shielded jack provides superior alien crosstalk (AXT) suppression and protects critical data from potential EMI/RFI (electromagnetic interference/radio frequency interference). The jack is part of a complete ATLAS-X1 Cat 6A shielded system ideal for government, healthcare, manufacturing, transportation, gaming, and other environments where EMI/RFI and/or security may be a concern.

FEATURES
Independently tested and guaranteed to exceed all component, permanent link, and channel margins
Patented Retention Force Technology™ (RFT) protects against tine damage and increases system longevity
For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
Shielding provides EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression
Unique design supports tool-free termination/re-termination and requires no specialised termination tool
Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
Terminates from 26- to 22 AWG solid or stranded conductors for use on various cable types
Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
Available in 13 ANSI/TIA-606-C compatible colours
Select jacks available with interchangeable icons (voice, data, A/V, and blank, colour coded to match the jack face) for easy identification and tracking of data, voice, or other functions
Jack with internal shutter protects against dust and debris
Solid metal body dissipates 53% more heat than traditional plastic, minimising damage from excess heat in PoE applications
Tine geometry prevents arcing damage where plug and jack make contact
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
SPECIFICATIONS
Brand: Atlas X1
Category Rating: Cat 6A
Colour: Black
Shielding: Shielded
PATENTS
CA2699970
EP3132510
EP3363082
GB2562884
MX289317
MX385657
US10151890
US10371902
US7824231
US9496644
US9515437
US9515437
US9627827
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
WARRANTY

1-year limited warranty
