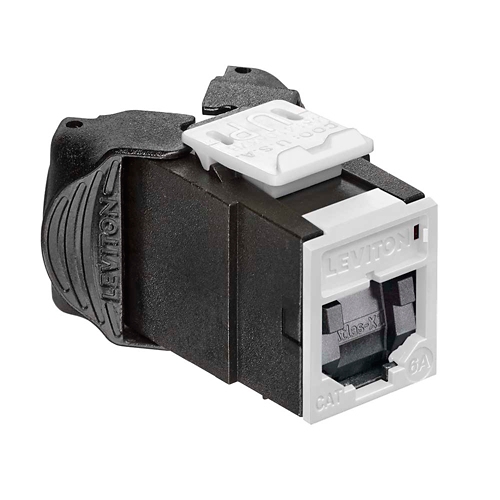

Atlas-X1™ Cat 6A Unshielded QUICKPORT™ Jack with Shutters, Tool Free | White

The ATLAS-X1 Cat 6A Component-Rated UTP QUICKPORT Jack supports 10GBASE-T networks. The jack is part of a complete ATLAS-X1 Cat 6A UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends.

FEATURES
Independently tested and guaranteed to exceed all component, permanent link, and channel margins
Patented Retention Force Technology™ (RFT) protects against tine damage and increases system longevity
For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
Unique design supports tool-free termination/re-termination and requires no specialised termination tool
Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
Available in 13 ANSI/TIA-606-C compatible colours
Tested and approved for use in air-handling spaces (plenum rating) in accordance with UL Standard 2043
Select jack available with interchangeable icons (voice, data, A/V, and blank, colour coded to match the jack face) for easy identification and tracking of data, voice, or other functions
Jack with internal shutter protects against dust and debris
Solid metal body dissipates 53% more heat than plastic, minimising damage from excess heat in PoE applications
Tine geometry prevents arcing damage where plug and jack make contact
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
SPECIFICATIONS
Brand: Atlas-X1
Category Rating: Cat 6A
Colour: White
Shielding: UTP
PATENTS
US9496644
US10371902
EP3363082
GB2562884
EP3132510
US9627827
MX385657
US9515437
US7824231
CA2699970
US10151890
MX289317

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.

WARRANTY

1-year limited warranty
