LEVITON | Cat 6 24 AWG U/UTP LSHF/LSZH EuroClass Eca Cable | 305m Box Violet - LE-C6U-Eca-B305VT4

SKU
421822
Brand
MPN
LE-C6U-Eca-B305VT4
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$248.00
Buy Now And Earn 248 Reward Points!

Leviton | C6U-Eca-B305VT4 | Cat 6 24 AWG U/UTP 4 Pair LSHF/LSZH EuroClass Eca Cable | 305m Box Violet

Leviton's Category 6 U/UTP 24AWG cables meet Category 6 performance standards. They are rated to 250MHz and are suitable for use in all Class E structured wiring cable systems. This cable supports Gigabit Ethernet, Power over Ethernet, voice, and broadband video transmissions at frequencies up to 250MHz.

FEATURES

  • 24 AWG solid annealed copper wire
  • Polyolefin core Insulation

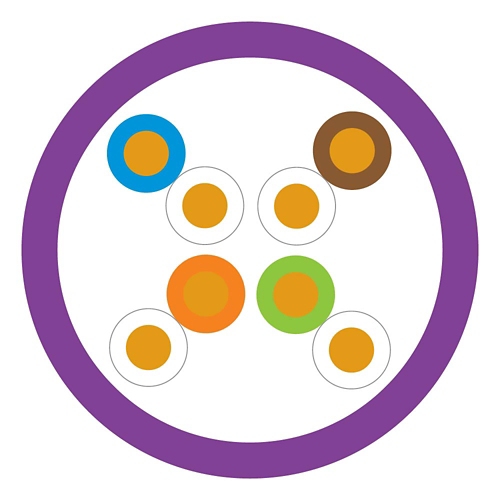

  • 4 unshielded twisted pairs cabled together
  • Designed to support all class E protocols including Gigabit Ethernet
  • HFFR-LS* jacket enables the cable to meet the requirements of the Construction Products Regulation (CPR) EuroClass Eca
  • Included in the Leviton 25-Year System Warranty when used in conjunction with Leviton copper connectivity. System warranties are available for qualified projects installed by certified contractors
  • Reel and box packaging is 100% recyclable

*  Halogen Free Flame Retardant – Low Smoke

SPECIFICATIONS

  • Category Rating: Cat 6
  • Colour: Violet
  • Construction: U/UTP
  • Flame Rating: Euroclass - Eca|LSHF/LSZH
  • Nominal Diameter: 5.3mm
  • Length: 305m
  • Packaging: Box

WARRANTY

1-year limited warranty



Specifications

More Information
SKU LE-C6U-Eca-B305VT4
Brand Leviton
Manufacturer Part# C6U-Eca-B305VT4
Length 305m
Cable Type Cat 6 Solid
Colour Violet
Construction Material 24AWG x 4Pair, 100% Bare Copper
Cable Category CAT6
Jacket Material LSZH
Country of Origin United Kingdom
Warranty 1 Year
