LEVITON | Cat 6 23 AWG U/UTP LSHF/LSZH EurocClass Eca Cable | 305m Box Blue - LE-C6U-HF1-Eca-Rlx-305BU

SKU
421823
Brand
MPN
LE-C6U-HF1-Eca-Rlx-305BU
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$248.00
Buy Now And Earn 248 Reward Points!

Leviton | C6U-HF1-Eca-Rlx-305BU | Cat 6 23 AWG U/UTP 4 Pair LSHF/LSZH EuroClass Eca Cable | 305m Box Blue

Leviton Category 6 U/UTP cables exceed Category 6 performance standards. They are rated to 250MHz and are suitable for use in all Class E structured wiring cable systems. Category 6 U/UTP cables support Gigabit Ethernet, Power over Ethernet, voice, and broadband video transmissions at frequencies up to 250MHz.

FEATURES

  • 23 AWG solid annealed copper wire

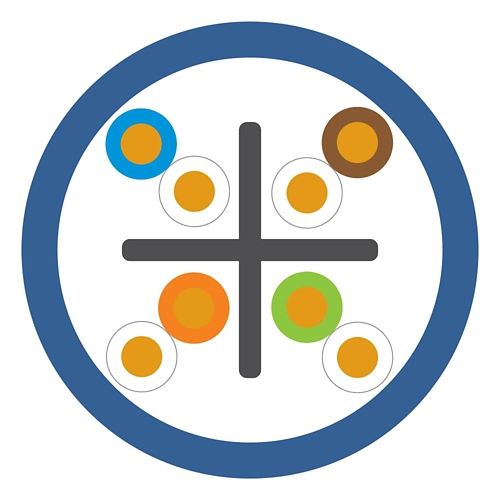

  • 4 unshielded twisted pairs cabled together
  • Central separator for increased internal crosstalk performance
  • HFFR-LS* jacket enables the cable to meet the requirements of the Construction Products Regulation (CPR) EuroClass Eca
  • CE and UKCA marked for CPR
  • Included in the Leviton Limited 25-Year System Warranties when used in conjunction with Leviton copper connectivity. System warranties are available for qualified projects installed by certified contractors
  • Designed and manufactured in a carbon neutral facility in the UK
  • Reel and box packaging are 100% recyclable

* Halogen Free Flame Retardant – Low Smoke

SPECIFICATIONS

  • Category Rating: Cat 6
  • Colour: Blue
  • Construction: U/UTP
  • Flame Rating: EuroClass - Eca|LSHF/LSZH
  • Nominal Cable Diameter: 5.8mm
  • Length: 305m

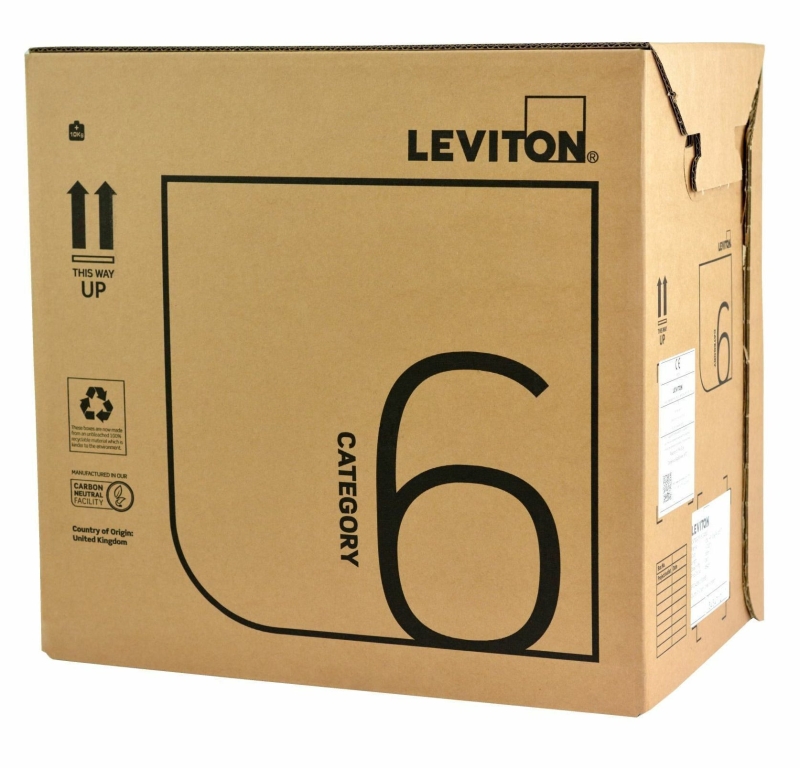

  • Packaging: Box

WARRANTY

1-year limited warranty



Specifications

More Information
SKU LE-C6U-HF1-Eca-Rlx-305BU
Brand Leviton
Manufacturer Part# C6U-HF1-Eca-Rlx-305BU
Length 305m
Cable Type Cat 6 Solid
Colour Blue
Construction Material 23AWG x 4Pair, 100% Bare Copper
Cable Category CAT6
Jacket Material LSZH
Country of Origin United Kingdom
Warranty 1 Year
