LEVITON | Cat 6 23 AWG U/UTP LSHF/LSZH EurocClass Eca Cable | 305m Box Grey - LE-C6U-HF1-Eca-Rlx-305GY
SKU
421824
Brand
MPN
LE-C6U-HF1-Eca-Rlx-305GY
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$267.00
Buy Now And Earn 267 Reward Points!

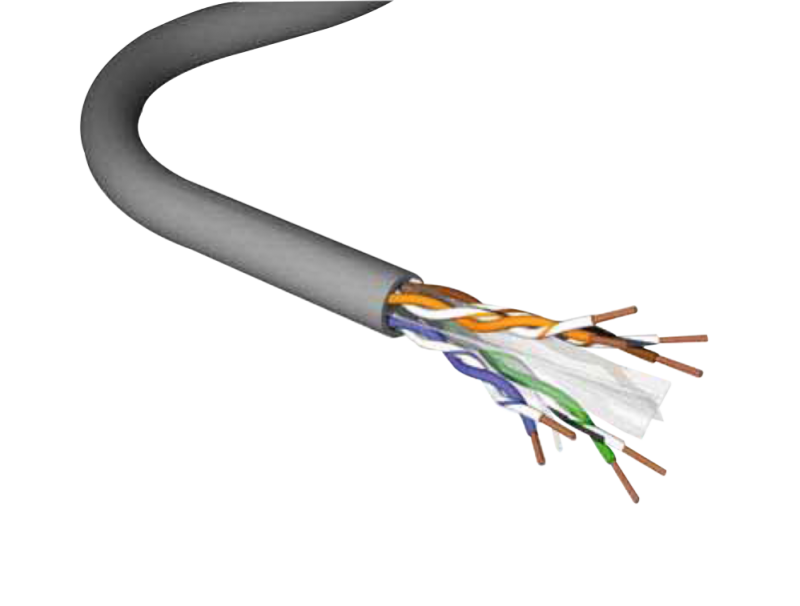

Leviton | C6U-HF1-Eca-Rlx-305GY | Cat6 23 AWG U/UTP 4 Pair LSHF/LSZH EuroClass Eca Cable | 305m Box Grey
Leviton Category 6 U/UTP cables exceed Category 6 performance standards. They are rated to 250MHz and are suitable for use in all Class E structured wiring cable systems. Category 6 U/UTP cables support Gigabit Ethernet, Power over Ethernet, voice, and broadband video transmissions at frequencies up to 250MHz.
FEATURES
- 23 AWG solid annealed copper wire
- 4 unshielded twisted pairs cabled together
- Central separator for increased internal crosstalk performance
- HFFR-LS* jacket enables the cable to meet the requirements of the Construction Products Regulation (CPR) EuroClass Eca
- CE and UKCA marked for CPR
- Included in the Leviton Limited 25-Year System Warranties when used in conjunction with Leviton copper connectivity. System warranties are available for qualified projects installed by certified contractors
- Designed and manufactured in a carbon neutral facility in the UK
- Reel and box packaging are 100% recyclable
* Halogen Free Flame Retardant – Low Smoke
SPECIFICATIONS
- Category Rating: Cat 6
- Colour: Grey
- Construction: U/UTP
- Flame Rating: EuroClass - Eca|LSHF/LSZH
- Nominal Cable Diameter: 5.8mm
- Length: 305m
- Packaging: Box
WARRANTY
1-year limited warranty
Specifications
SKU | LE-C6U-HF1-Eca-Rlx-305GY |
---|---|
Brand | Leviton |
Manufacturer Part# | C6U-HF1-Eca-Rlx-305GY |
Length | 305m |
Cable Type | Cat 6 Solid |
Colour | Grey |
Construction Material | 23AWG x 4Pair, 100% Bare Copper |
Cable Category | CAT6 |
Jacket Material | LSZH |
Country of Origin | United Kingdom |
Warranty | 1 Year |
