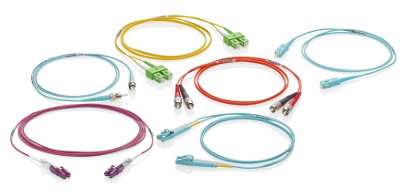

Enhance your network's performance with the Leviton VPC-S2R2LPLP0030 Fiber Patch Cord. Designed for high-speed data transmission, this OS2 single-mode patch cord ensures low insertion loss and high return loss, making it ideal for data centres, broadband CATV, Passive Optical Networks (PON), WDM or DWDM multiplexing, FTTH, and voice services in ATM and SONET metropolitan and access networks. Its 2.0mm duplex round cable with LC/UPC Uniboot connectors provides a compact and efficient solution for high-density environments.

Constructed with bend-insensitive glass, this patch cord maintains optimal performance even in tight bending scenarios, reducing signal loss and enhancing reliability. The Low Smoke Halogen Free (LSHF) jacket ensures safety and compliance with stringent building codes, making it suitable for various installation environments.

Each patch cord undergoes rigorous testing to guarantee superior optical performance. The LC Unibody connectors feature a patented reversible polarity design, allowing for quick and tool-free polarity changes in the field, enhancing installation flexibility and reducing downtime.

FEATURES
Supports high-speed data transmission for demanding applications
Bend-insensitive glass construction reduces signal loss in tight spaces
LSHF jacket ensures safety and compliance with building codes
LC Unibody connectors with reversible polarity for easy field adjustments
2.0mm duplex round cable design ideal for high-density installations
SPECIFICATIONS
Fiber Type: OS2 Single-Mode
Connector Type: LC/UPC Uniboot
Cable Diameter: 2.0mm
Cable Length: 3.0 meters
Jacket Material: Low Smoke Halogen Free (LSHF)
Insertion Loss: ≤ 0.25 dB
Return Loss: ≥ 50 dB
Operating Temperature: -20°C to +70°C
Compliance: ANSI/TIA-568.3-E, ISO/IEC 11801-1
WARRANTY
1-Year Limited Warranty
