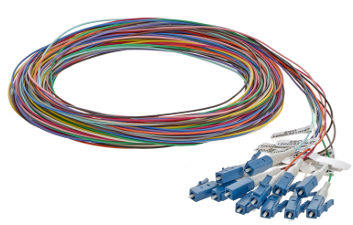

Enhance your network's performance with the Leviton VPK-M4TLC1200-01 Fiber Pigtail Kit. Designed for high-speed data transmission, this OM4 multimode pigtail kit ensures low insertion loss and high return loss, making it ideal for data centres, broadband CATV, Passive Optical Networks (PON), WDM or DWDM multiplexing, FTTH, and voice services in ATM and SONET metropolitan and access networks. Each pigtail features a 900-micron tight buffer LSZH coating and LC connectors, providing a compact and efficient solution for high-density environments.

Constructed with bend-insensitive glass, these pigtails maintain optimal performance even in tight bending scenarios, reducing signal loss and enhancing reliability. The Low Smoke Zero Halogen (LSZH) coating ensures safety and compliance with stringent building codes, making them suitable for various installation environments.

Each pigtail undergoes rigorous testing to guarantee superior optical performance. The LC connectors feature precision pre-radiused zirconia ferrules supporting consistent End Face Geometry (EFG), ensuring high-quality connections and long-term durability.

FEATURES
Supports high-speed data transmission for demanding applications
Bend-insensitive glass construction reduces signal loss in tight spaces
LSZH coating ensures safety and compliance with building codes
Precision pre-radiused zirconia ferrules for consistent End Face Geometry
900-micron tight buffer design ideal for high-density installations
SPECIFICATIONS
Fiber Type: OM4 Multimode
Connector Type: LC/UPC
Coating: 900-micron tight buffer LSZH
Insertion Loss: ≤ 0.25 dB
Return Loss: ≥ 26 dB
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +75°C
Durability: > 500 matings
Length: 1 meter
Color: TIA colors 1-12
WARRANTY
1-Year Limited Warranty
