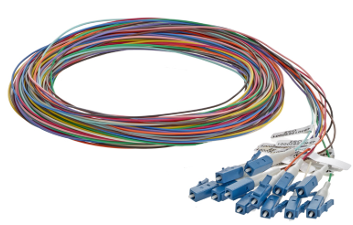

Enhance your network's performance with the Leviton VPK-S2TLC1200-01 Fiber Pigtail Kit. Designed for seamless fusion splicing in structured cabling systems, this kit is ideal for data centres, broadband CATV, Passive Optical Networks (PON), WDM or DWDM multiplexing, FTTh, and voice services in ATM and SONET metropolitan and access networks. Each pigtail features a 900-micron tight buffer with a Low Smoke Zero Halogen (LSZH) coating, ensuring safety and compliance with stringent building codes.

Equipped with LC/UPC connectors, these single-mode OS2 pigtails offer low insertion loss and high return loss, ensuring efficient and reliable data transmission. The kit includes 12 pigtails, each 1 metre in length, following the TIA colour sequence for easy identification and organisation during installation.

Manufactured with bend-insensitive glass, these pigtails maintain optimal performance even in tight bending scenarios, reducing signal loss and enhancing reliability. Each pigtail undergoes rigorous testing to guarantee superior optical performance, providing a dependable solution for your high-speed network applications.

FEATURES
Ideal for fusion splicing in structured cabling systems
900-micron tight buffer with LSZH coating for safety
LC/UPC connectors for low insertion loss and high return loss
Includes 12 pigtails, each 1 metre in length, with TIA colour coding
Bend-insensitive glass construction reduces signal loss in tight spaces
SPECIFICATIONS
Fiber Type: Single-mode OS2
Connector Type: LC/UPC
Buffer Diameter: 900 microns
Jacket Material: Low Smoke Zero Halogen (LSZH)
Insertion Loss: ≤0.25dB
Return Loss: ≥50dB
Operating Temperature: -20°C to +70°C
Length: 1 metre per pigtail
Colour Coding: TIA colours 1-12
WARRANTY
1-Year Limited Warranty
