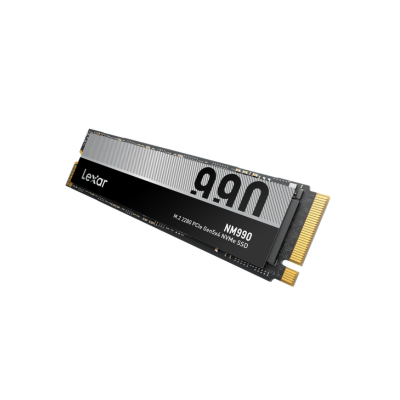

Lexar 2TB NM990 M.2 2280 PCIe Gen 5x4 NVMe SSD up to 14500MB/s read, 10000MB/s write, Five-year limited warranty

Capacity2TB Form FactorM.2 2280InterfacePCIe Gen5x41TB SpeedRead: up to 14,000MB/s; Write: up to 7,500MB/s; Random Read: 1600K IOPS; Random Write: 1000K IOPS2TB SpeedRead: up to 14,000MB/s; Write: up to 10,000MB/s; Random Read: 2000K IOPS; Random Write: 1400K IOPS4TB SpeedRead: up to 14,000MB/s; Write: up to 11,000MB/s; Random Read: 2000K IOPS; Random Write: 1500K IOPSOperating Temperature0°C to 70°C (32°F to 158°F)Storage Temperature-40°C to 85°C (-40°F to 185°F)Shock Resistance1500G, 0.5ms, Half Sine WaveVibration Resistance10–2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X, Y, Z)TBW1TB: 750TBW; 2TB: 1500TBW; 4TB: 3000TBWMTBF1,500,000 hoursDimensions80 × 22 × 2.45 mmWeight6gWarrantyFive-year limited warranty
Capacity
2TB
Form Factor
M.2 2280
Interface
PCIe Gen5x4
1TB Speed
Read: up to 14,000MB/s; Write: up to 7,500MB/s; Random Read: 1600K IOPS; Random Write: 1000K IOPS
2TB Speed
Read: up to 14,000MB/s; Write: up to 10,000MB/s; Random Read: 2000K IOPS; Random Write: 1400K IOPS
4TB Speed
Read: up to 14,000MB/s; Write: up to 11,000MB/s; Random Read: 2000K IOPS; Random Write: 1500K IOPS
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Shock Resistance
1500G, 0.5ms, Half Sine Wave
Vibration Resistance
10–2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X, Y, Z)
TBW
1TB: 750TBW; 2TB: 1500TBW; 4TB: 3000TBW
MTBF
1,500,000 hours
Dimensions
80 × 22 × 2.45 mm
Weight
6g
Warranty
Five-year limited warranty
