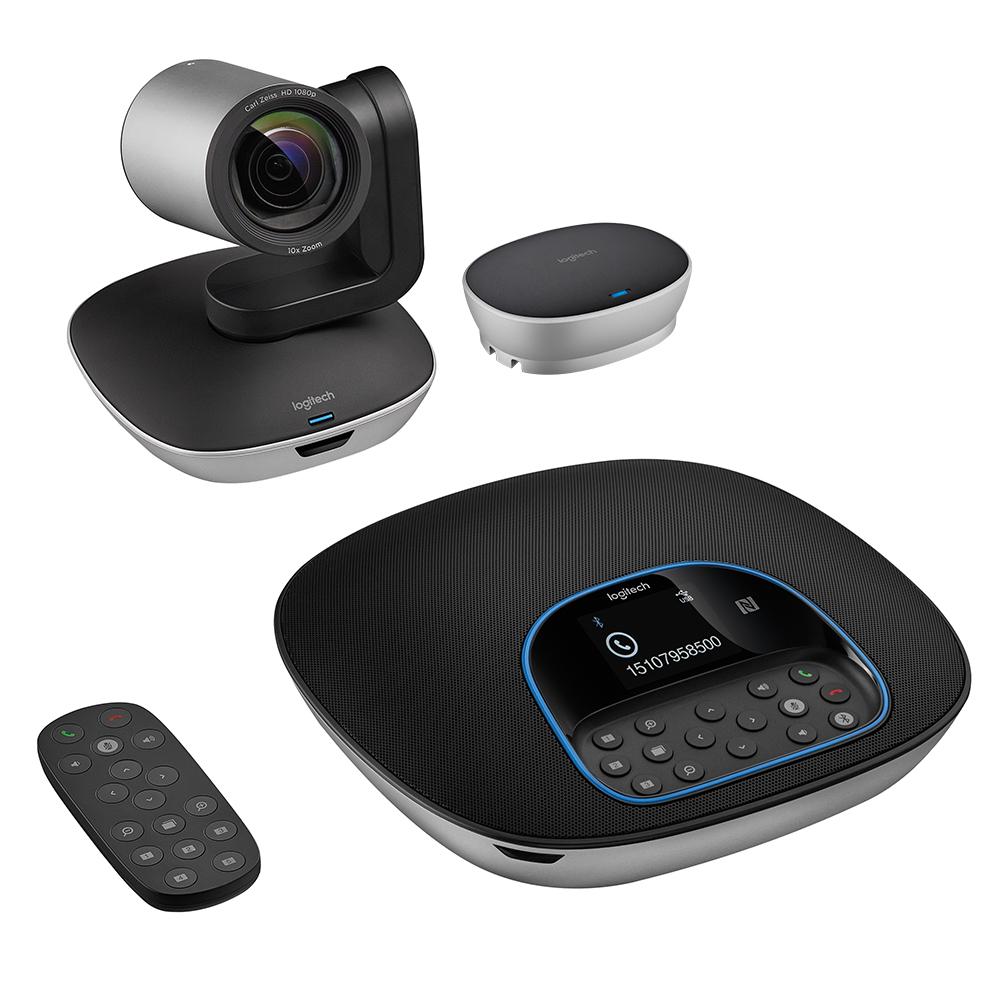

Logitech Group Video Conferncing System - Large Rooms 960-001054

SKU
224449
Brand
MPN
960-001054
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,964.00
Buy Now And Earn 1964 Reward Points!

SPECS & DETAILS

Dimensions

    Camera:
  • Height x Width x Depth: 130 mm x 170 mm x 138 mm
    Weight: 585 g



    Speakerphone:
  • Height x Width x Depth: 240 mm x 65 mm x 240 mm
    Weight: 1223 g

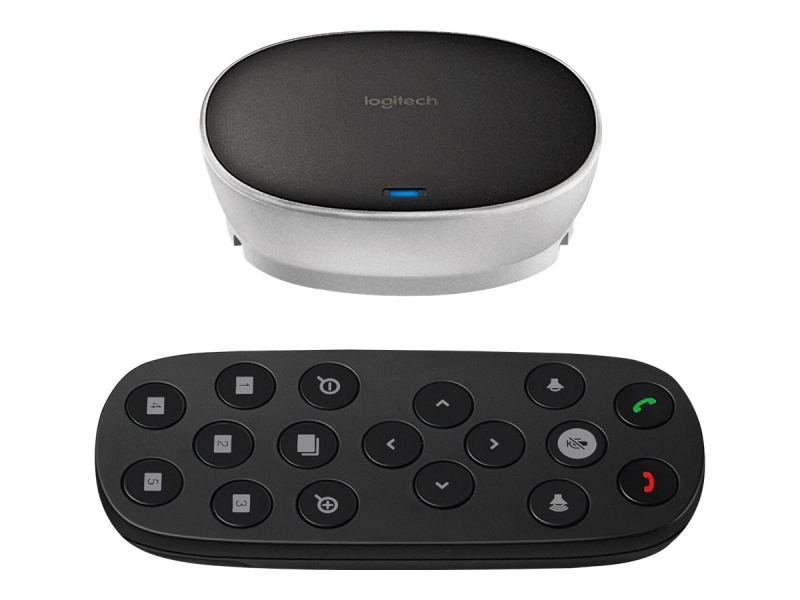

    Hub:
  • Height x Width x Depth: 94 mm  x 34 mm  x 74 mm
    Weight: 83 g



    Remote:
  • Height x Width x Depth: 50 mm x 120 mm x 12 mm
    Weight: 51 g



    Wall/Table Mount:
  • Height x Width x Depth: 210 mm x 120 mm x 99 mm
    Weight: 255 g



    Expansion Mics:
  • Height x Width x Depth: 83 mm x 83 mm x 21 mm
    Weight: 230 g

System Requirements

  • Windows® 7, 8.1 or 10
    Mac® OS X 10.7 or higher

Technical Specifications

Camera:



  • Smooth motorized pan
  • Tilt and zoom
  • Controlled from remote or console 260°pan
  • 130-degree tilt
  • 10x lossless HD zoom
  • 90-degree field of view
  • Full HD 1080p 30fps
  • H.264 UVC 1.5 with Scalable Video Coding (SVC)
  • Autofocus 5 camera presets
  • Far-end control (PTZ) of ConferenceCam product
  • ZEISS lens certification
  • Kensington security slot
  • LED to confirm video streaming
  • Standard tripod thread



Remote control:



  • Dockable 8.5 m/28-foot range



Speakerphone:



  • Full-duplex performance
  • Acoustic echo cancellation
  • Noise reduction technology
  • Ultra-wideband audio
  • Bluetooth and NFC enabled
  • LCD for caller ID, call duration and other functional response
  • LEDs for speakerphone streaming, mute, hold, and Bluetooth
  • Touch controls for call answer/end, volume and mute, Bluetooth – plus camera
  • PTZ, “home” preset and far-end control
  • Microphones (Tx)
  • Four omni-directional microphones supporting 6 m/20-foot diameter range
  • Frequency response: 100Hz – 11KHz
  • Sensitivity: -28dB +/-3dB
  • Distortion: <5% from 200Hz
  • Kensington security slot



Hub / Cable:



  • Central mountable hub for connection of all components
  • Included adhesive solution for under-table mounting
  • Two cables for connection between hub and camera/ speakerphone (Length: 5m/16 ft)
  • One USB cable for connection to PC/Mac (Length: 2 m/6.6 ft)
  • AC Power adapter (Length: 3 m/9.8 ft)



Mount:

Dual purpose mount for wall placement or for elevating camera on table

Compliance and tools:



  • USB 2.0 compliant
  • UVC-compliant video and audio for broad application compatibility
  • Skype for Busines certified, Microsoft® Lync®, Cisco Jabber® and WebEx® compatible
  • Enhanced integration with Logitech Collaboration Program (LCP) members
  • Downloadable diagnostic tool
  • Field upgradeable firmware tool
  • Downloadable app plug-ins for advanced feature support



Package Contents

  • Camera
    Speakerphone
    Remote control
    Two 5m/16.4’ cables for connection between speakerphone and hub and camera and hub
    One 3m/9.8’ meter cable between hub and PC
    Velcro for cable management
    Velcro for hub to table securing
    Powered hub
    Power adapter with regional plugs
    Mount
    Quick start guide
    Warranty card

Warranty Information

2-Year Limited Hardware Warranty

Part Number

GROUP
  • PN 960-001054
GROUP + Expansion Mics
  • PN 960-001054/989-000171
