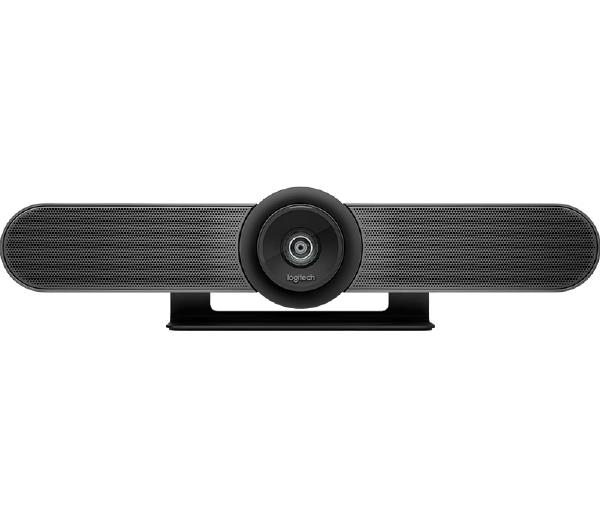

Logitech Meetup - Conferencecam With 120-Degree Fov And 4K Optics 960-001101

SKU
272341
Brand
MPN
960-001101
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

Overview



    THE PERFECT CONFERENCECAM FOR SMALL ROOMS

    MeetUp is Logitech's premier ConferenceCam designed for small conference rooms and huddle rooms. Stop crowding around laptops. With 4K optics and a super-wide 120-degree field of view, MeetUp makes every seat at the table clearly visible. And its integrated audio is optimized for huddle room acoustics, ensuring everyone can be heard as well as seen.

    SUPER-WIDE FIELD OF VIEW FOR TIGHT SPACES Logitech® MeetUp brings remarkable video quality to small conference rooms. Its 120-degree FOV easily accommodates huddle rooms with up to eight people. The 4K ultra high-def sensor and Logitech lens deliver extra sharp clarity, while pan, tilt, and zoom allow you to quickly refocus as needed.


    UNIQUELY ENGINEERED SOUND DESIGN

    MeetUp's integrated audio is optimized for huddle room acoustics, delivering exceptional sound in small rooms. Three beamforming mics and a custom-tuned speaker ensure meetings sound as great as they look. Add Expansion Mic for MeetUp to extend the audio range up to 4.2 meters.

    AS EASY AS PLUG AND PLAY

    Step into a huddle room and instantly start a video collaboration. MeetUp plugs into a USB port and simply works. Use any video conferencing software application and cloud service, including the ones you already use.

    DESIGNED FOR THE WAY PEOPLE MEET

    Small conference rooms are growing in popularity, and MeetUp rises to the challenge. It provides superb resolution, color balance, detail, and audio in tight spaces. With the included wall mount and compact design that minimizes cable clutter, MeetUp optimizes the huddle room experience.

    EXTRAS PROVIDE MORE CONVENIENCE Our free mobile app (available on Google Play and iTunes) turns your smartphone or tablet into a remote control for MeetUp. Add accessories such as the Logitech Expansion Mic and TV Mount for different room sizes and configurations. Order replacement parts if needed to keep everything up and running.

Package Contents




    Rear View



    • MEETUP ConferenceCam with 120-degree FOV and 4K )ptics
    • Remote Control
    • USB Cable
    • Power Supply
    • Wall Mount and Hardware
    • User Documentation
  • DIMENSIONS

      Main unit

      • Height x Width x Depth:
      • 4.1 in (104 mm) x 15.75 in (400 mm) x 3.35 in (85 mm)
      • Weight: 2.3 lbs (1.04kg)



      Remote Control

      • Height x Width x Depth:
      • 3.25 in (83 mm) x 3.25 in (83 mm) x 0.375 in (10 mm)

    SYSTEM REQUIREMENTS

      • Windows®7, Windows 8.1, or Windows 10
        macOS® 10.10 or higher


      Chrome OS Version 29.0.1547.70 and higher
      USB 2.0 port (USB 3.0 required for 4K video)

  • TECHNICAL SPECIFICATIONS

    OVERALL


    •

      Field of View

      • Diagonal:120°
      • Horizontal: 113°
      • Vertical: 80.7°

      3-microphone speakerphone

      Optional expansion microphone-ready

      4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps with customer-supplied USB 3.0 cable); 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps); 720p HD video calling (up to 1280 x 720 pixels @ 30 fps); with supported clients

      All-in-one design<

      Motorized pan/tilt

      Logitech lens

      3 camera presets

      Bluetooth® wireless technology

      RF remote control

      Multiple mounting options, including table and wall mount; optional TV mount available

      Kensington security slot




    MICROPHONE


    •

      Pickup Range: 2.4 m /8’

      Pickup Range with Expansion Mic: 4.2 m /14’

      Sensitivity: -27dB

      Microphone frequency response: 90Hz - 16kHz for full voice reproduction and high intelligibility without noise

      Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction

      AEC (Acoustic echo cancellation)

      VAD (Voice activity detector)

      Microphone background noise suppression

      Microphone date rate: 32 kHz sampling rate

      Recommended # of participants:6

      Recommended # of participants with expansion mic: 8




    SPEAKER


    •

      Acoustically suspended speaker enclosure

      Volume adjustable to 95 dB SPL at 1/2 meter peak

      Speaker sensitivity 86.5+/-3dB SPL at 1/2 meter

      Distortion: 200 Hz–300Hz < 3%, 3000 Hz–10KHz < 1%

      Peak-limiting algorithm prevents even momentary speaker clipping to prevent distortion



    • COMPATIBILITY AND INTEGRATIONS


    •

      Plug-and-play USB connectivity

      Certified for Skype for Business and ready for Teams

      Zoom Certified

      Fuze Certified

      Certified for Google Hangouts Meet Hardware

      Microsoft Cortana®

      Cisco Jabber®

      Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras



  • PACKAGE CONTENTS

    MeetUp ConferenceCam
    Remote control
    USB cable: 16 ft (5m)
    Power supply
    Wall mount and hardware
    User documentation

    WARRANTY INFORMATION

    2-Year Limited Hardware Warranty

    PART NUMBER

    MeetUp + Expansion Mic

    PN: 960-001201

    Meetup

    PN: 960-001101

MeetUp is Logitech's premier ConferenceCam designed for small conference rooms and huddle rooms. Stop crowding around laptops. With 4K optics and a super-wide 120-degree field of view, MeetUp makes every seat at the table clearly visible. And its integrated audio is optimized for huddle room acoustics, ensuring everyone can be heard as well as seen.
⚫Super-wide 120-degree field of view
⚫3-microphone speakerphone
⚫Optional expansion microphone-ready
⚫4K Ultra HD video calling (up to 3840 x 2160 pixels @ 30 fps); 1080p Full HD video calling (up to 1920 x 1080 pixels @ 30 fps); 720p HD video calling (up to 1280 x 720 pixels @ 30 fps); with supported
