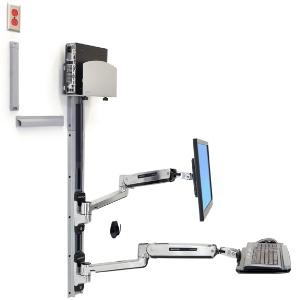

Ergotron Lx Sit Stand Wall Mount System, Med Silver Cpu Holder, Polished 45-358-026
SKU
242400
Brand
MPN
45-358-026
Warranty
Standard Manufacturer's Warranty
$1,596.00
Buy Now And Earn 1596 Reward Points!
Product Benefits
- Creates a complete and compact workstation
- Articulating arms feature full tilt/pan capability and 20" (51 cm) height adjustment, allowing users to sit or stand while computing
- Extends LCD up to 33" (84 cm); keyboard tray extends up to 42" (107 cm); push your display and keyboard out of the way when not in use
- Ideal for space-constrained rooms—keyboard folds to within 6.8" (17 cm) of wall in storage position. LCD arm folds back to a depth of 5.5" (14 cm)
- Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
- Effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient
- Cable management feature routes cables under the arm, out of the way
- Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses
- Secure installation—locking connections between arm, extension and base
- Easily change placement of arms on Wall Track by loosening set-screws
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
- Patented Constant Force™ lift-and-pivot motion technology
Tech Specs
-
SCREEN ≤42"
-
CAPACITY 7–25 lbs
3.2–11.3 kg * -
LIFT 20"
50.8 cm -
TILT 75° †
-
PAN 360° **
-
ROTATION 360°
-
MIS-D/E/F‡
-
10 years
- Part Number: 45-358-026
- Description: LX Sit-Stand Wall Mount System with Medium CPU Holder (polished aluminum, silver CPU holder)
- Includes 10" and 34" Wall Tracks with (2) black track covers, LX Sit-Stand Wall Mount LCD Arm, LX Sit-Stand Keyboard Arm, wrist rest, mouse holder, Medium CPU Holder, two (2) 10" Cable Channels, mounting kits for hollow-wall and wall-stud installation
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
- * Weight Capacity: display = 7–25 lbs (3.2–11.3 kg); keyboard = 5 lbs (2.2 kg); CPU = 40 lbs (18 kg). Monitor depth may affect weight capacity
- † Monitor tilts 70° up and 5° down
- ** Rotation Stop on wall-mount base limits turn of extension-base connection to 180°, preventing extension from contacting wall
- Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
- ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
- CPU Size Range: 3-3/8" to 8" (9 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included CPU spacer within the holder
- Base includes theft-deterrent anchor holes for cable locks. CPU Holder includes theft deterrent anchor holes for cable locks and fasteners for locking the holder’s width
- NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
- Product Weight: 39 lbs (17.8 kg)
- Shipping Dimensions: 36.4" x 22.3" x 6.8" (93 x 57 x 17 cm)
- Shipping Weight: 47.3 lbs (21.5 kg)
- Warranty: Ten (10) years
| Marketing Text | With Medium Silver CPU Holder. This is a complete solution that accommodates an LCD, keyboard and CPU, creating a sit-stand computer workstation. It is perfect for space-constrained areas: simply fold the keyboard and LCD tight against the wall when not in use. |
| PI Date | Jun 2013 |
| Brand Name | Ergotron |
| Manufacturer Web Site | http://www.ergotron.com/ |
| Product Type | Wall Mount System |
| Display Size Supported | 42inch |
| Weight Capacity | 3.2 - 11.3 Kg |
| Tilt | 75degree |
| Pan | 360degree |
| Rotation | 360degree |
| Weight (Kg) | 17.8 |
| Color | Silver |
| Material | Aluminium |
| Other Features | * Creates a complete and compact workstation. * Articulating arms feature full tilt/pan capability and 20 inch (51 cm) height adjustment, allowing users to sit or stand while computing. * Extends LCD up to 33 inch (84 cm); keyboard tray extends up to 42 inch (107 cm); push your display and keyboard out of the way when not in use. * Ideal for space-constrained rooms - keyboard folds to within 6.8 inch (17 cm) of wall in storage position. LCD arm folds back to a depth of 5.5 inch (14 cm). * Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity. * Effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient. * Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses. |
| Warranty Information | 5 years |
