Startech M.2 To U.2 Adapter - M.2 Drive To U.2 (sff-8639) Host Adapter For M.2 Pcie Nvme Ssds -
QUICK OVERVIEW

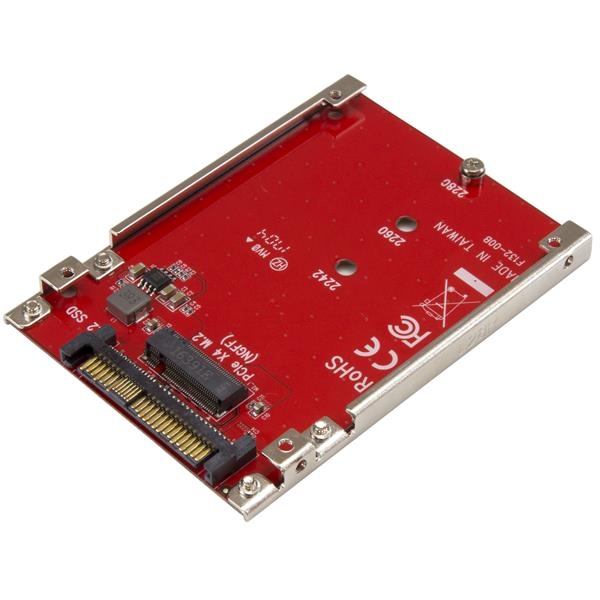

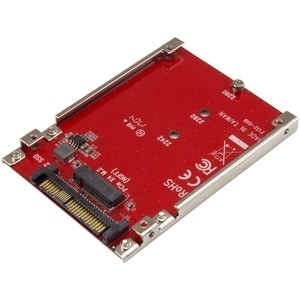

This PCI Express M.2 to U.2 adapter makes it easy to install an M.2 PCIe NVMe SSD into your desktop PC or server, and connect to the drive through an available U.2 (SFF-8639) compatible interface on your motherboard.
Upgrade your system cost-effectively
The M.2 to U.2 adapter is ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a server or desktop computer. It supports one M.2 PCIe NVMe SSD (M-Key), providing a cost-effective way to add M.2 NVMe performance to your computer or server through an available U.2 (SFF-8639) compatible interface on your motherboard.
Easy installation
The M.2 to U.2 adapter works with all desktop PCs and servers that have an available drive bay or a U.2 (SFF-8639) compatible host interface. The adapter card is OS independent, so there are no drivers or software required for installation.
The U2M2E125 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | M.2 (NGFF, M-Key, PCIe x4) |
| Host Connectors | U.2 (SFF-8639, x4 PCIe, NVMe) |
| Environmental | |
| Humidity | 15% - 90% RH |
| Operating Temperature | +5?C to +50?C (41?F to 122?F) |
| Storage Temperature | -25?C to +70?C (-13?F to 158?F) |
| Hardware | |
| Bus Type | PCI Express |
| Compatible Drive Types | M.2 (NGFF, M-Key, PCIe x4) |
| Drive Installation | Fixed |
| Fan(s) | No |
| Interface | U.2 (SFF-8639; PCIe x4) |
| Number of Drives | 1 |
| Supported Drive Height(s) | 2242 |
| 2260 | |
| 2280 | |
| Packaging Information | |
| Shipping (Package) Weight | 102 g [3.6 oz] |
| Physical Characteristics | |
| Color | Red |
| Max Drive Height | 2280 mm [89.8 in] |
| Product Height | 7 mm [0.3 in] |
| Product Length | 100 mm [3.9 in] |
| Product Weight | 36 g [1.3 oz] |
| Product Width | 70 mm [2.8 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | adapter-mounting screws |
| M.2 drive to U.2 adapter | |
| quick-start guide | |
| set of drive-mounting hardware | |
