Startech M.2 Ssd To 2.5in Sata Adapter Converter - Ngff Ssd To 2.5in Sata Converter Adapter With
SKU
223623
Brand
MPN
SAT32M225
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$41.00
Buy Now And Earn 41 Reward Points!
QUICK OVERVIEW

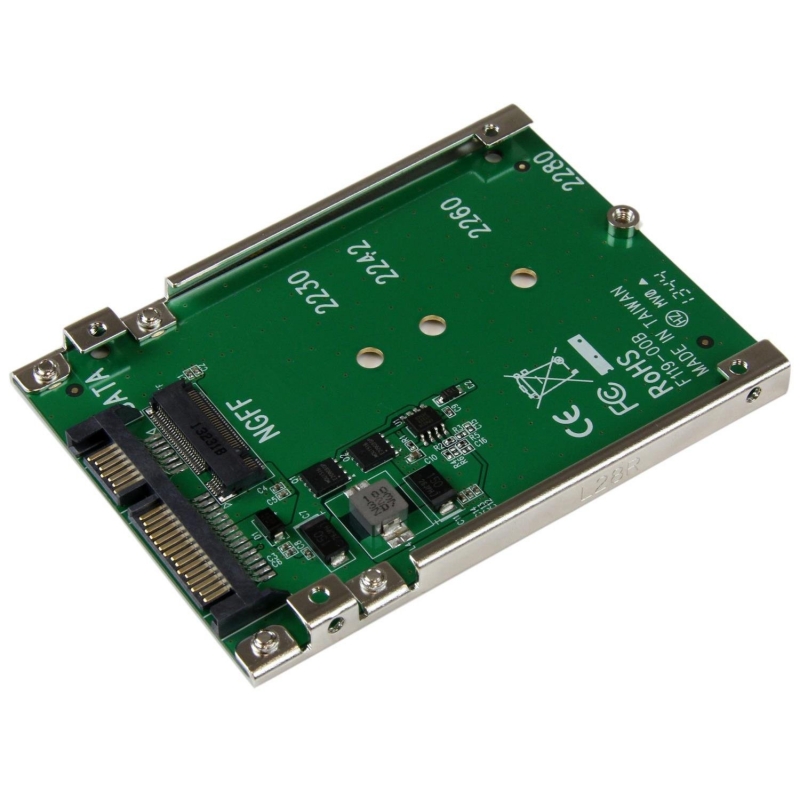

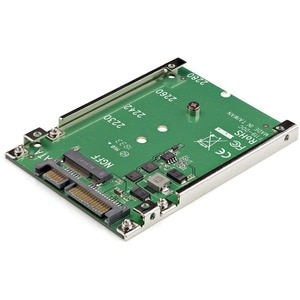

Open Frame Housing and 7mm Height - M.2 NGFF SSD to SATA Adapter for 2.5IN Drive Bay SAT32M225
| Connector(s) | |
| Drive Connectors | M.2 SATA (NGFF, B-Key) Receptacle |
| Host Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Environmental | |
| Operating Temperature | -40?C to 85?C (-40?F to 185?F) |
| Hardware | |
| Compatible Drive Types | M.2 SATA (NGFF, B-Key) |
| Drive Installation | Fixed |
| Interface | SATA |
| Number of Drives | 1 |
| Supported Drive Height(s) | 2230 |
| 2242 | |
| 2260 | |
| 2280 | |
| Packaging Information | |
| Shipping (Package) Weight | 104 g [3.7 oz] |
| Performance | |
| General Specifications | Not compatible with M.2 NVMe or AHCI PCI-Express SSDs |
| Hot Swap Capability | No |
| Maximum Data Transfer Rate | 6 Gbps |
| Type and Rate | SATA III (6 Gbps) |
| Physical Characteristics | |
| Product Height | 7 mm [0.3 in] |
| Product Length | 100 mm [3.9 in] |
| Product Weight | 38 g [1.3 oz] |
| Product Width | 70 mm [2.8 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | Installation manual |
| M.2 NGFF SSD to 2.5in SATA SSD Converter | |
| Mounting screw kit | |
Vastly increase system performance by adding the speed of an M.2 SSD (Next Generation Form Factor) in any 2.5" SATA application, with the SAT32M225 M.2 SSD to SATA adapter.
Utilize the full potential of your SATA III controller, with an M.2 SSD reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. M.2 SSDs can also save you money by reducing your power consumption over regular platter drives.
Help protect the health of your drive with an open-frame design that maximizes heat dissipation.
The SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
