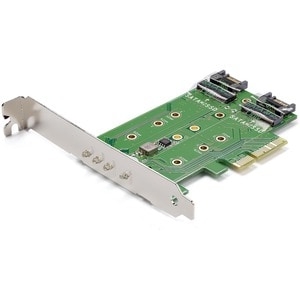

M.2 SSD Card 1x PCIe (NVMe) 2x Sata M.2 PEXM2SAT32N1

SKU
231186
Brand
MPN
PEXM2SAT32N1
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$80.00
Buy Now And Earn 80 Reward Points!
This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It's a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer. Increase the storage of your desktop PC If you need a simple and discreet way to expand your computer's storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using. Optimize your computer's performance When you couple this card with a PCI Express based M.2 drive, you can give your computer's performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time. Peace of mind, with simple and cost-effective data recovery Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes. Leverage the size and speed of M.2 drives This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case. Supports a wide range of drives You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230. The PEXM2SAT32N1 is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Product Type M.2 to PCI Express Adapter
Brand Name StarTech.com
TAA Compliant Yes
Product Color Green
Manufacturer Part Number PEXM2SAT32N1
Manufacturer Website Address http://www.startech.com/au
Packaged Quantity 1 Each
Manufacturer StarTech.com
Product Name 3-port M.2 NGFF SSD Adapter Card
Additional Information Connector(s) • Connector Type(s): 1 - PCI Express x4 • Internal Ports: 2 - M.2 (SATA, B-Key, NGFF); 1 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF); 2 - SATA (7 pin, Data) Environmental • Operating Temperature: 5°C to 50°C (41°F to 122°F) • Storage Temperature: -25°C to 70°C (-13°F to 158°F) • Humidity: 20%~80% RH (Non-condensing) Hardware • Ports: 3 • Interface: M.2 SATA; SATA; M.2 PCIe; • Bus Type: PCI Express • Card Type: Standard Profile (LP bracket incl.) • Port Style: Integrated on Card • Industry Standards: Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps); PCI Express 3.0 Indicators • LED Indicators: 3 - M.2 drive status/activity; 1 - Power
Certifications & Standards • CE • FCC
Country of Origin Taiwan
Environmentally Friendly Yes
Weight (Approximate) 65 g
Length 119.4 mm
Height 119.4 mm
Width 20.3 mm
Color Family Green
Product Material Steel
Shipping Dimensions Height 3, Width 13, Length 16.5, Shipping Weight 0.12 KG
M.2 SSD Card 1x PCIe (NVMe) 2x SATA M.2
