Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
Chipset	AMD B650
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
I/O Connectors	CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers); 1 x PS/2 keyboard/mouse port, 1 x HDMI port, 2 x DisplayPorts, 1 x RJ-45 port, 3 x audio jacks
Integrated CPU Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
PCI Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:  AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Processor Support	AMD Ryzen™ 7000 Series Processors/ AMD Ryzen™ 8000 Series Processors
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAM Type/Bus/Max	Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Socket	AMD Socket AM5
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:  AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Wireless & Bluetooth	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless

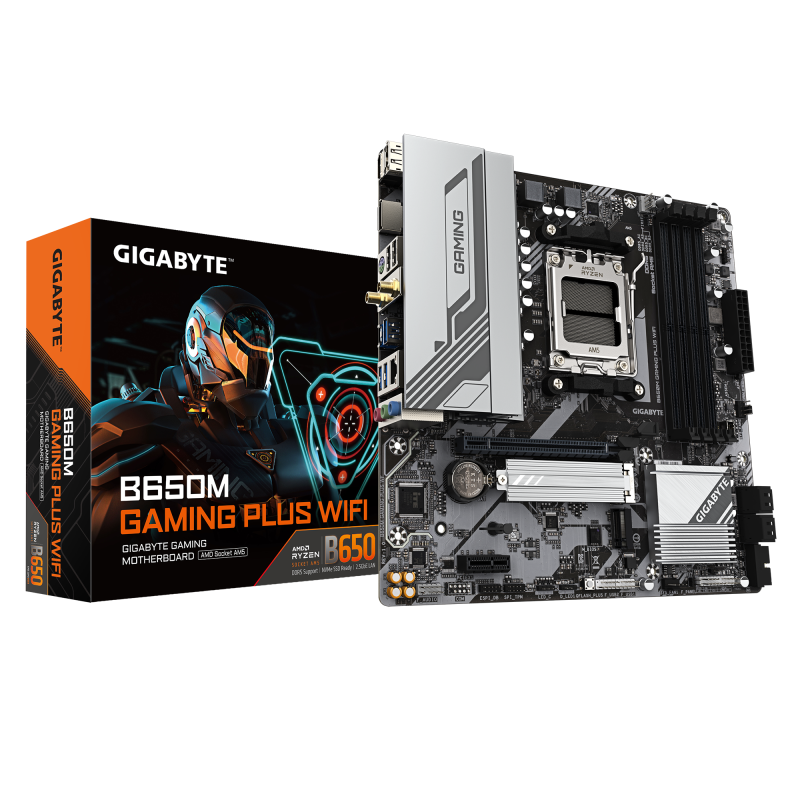

B650M GAMING PLUS WIFI AMD Socket AM5：Supports AMD Ryzen™ 7000 Series/ Ryzen™ 8000 Series Processors Unparalleled Performance：5+2+2 Phases Digital VRM Solution Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector EZ-Latch：PCIe x16 Slot with Quick Release Design Fast Networks：Wi-Fi 802.11ax & 2.5GbE LAN Extended Connectivity：2*DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
