Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Chipset	AMD B650
Form Factor	Micro ATX Form Factor; 24.0cm x 22.5cm
I/O Connectors	4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x Q-Flash Plus button, 2 x USB 3.2 Gen 1 ports, 1 x HDMI port, 1 x RJ-45 port, ?3 x audio jacks
Integrated CPU Graphics	Integrated Graphics Processor with AMD Radeon™
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
PCI Slots	1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Processor Support	AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
RAID	RAID 0, RAID 1, and RAID 10
RAM Type/Bus/Max	DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB
Socket	AM5
Storage Interface	1 x M.2, 4 x SATA 6Gb/s
Warranty	3 Years
Weight	1.2kg

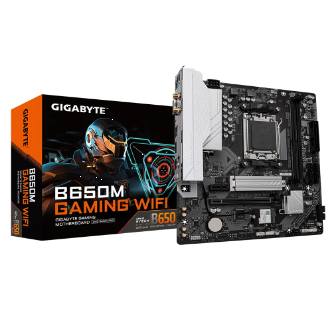

B650M GAMING WIFI (rev. 1.0) B650M GAMING WIFI AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors Unparalleled Performance：5+2+2 Phases Digital VRM Solution Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector EZ-Latch：PCIe x16 Slot with Quick Release Design Fast Networks：2.5GbE LAN Extended Connectivity：HDMI , D-sub Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. Digital VRM Design 5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage 802.11ac Wi-Fi Faster and Better Coverage with Dual Band 802.11ac Wi-Fi + BT 4.2 Module The onboard 802.11ac Wi-Fi module supports Dual Band and up to 433 Mbps, 3x faster Wi-Fi speed than 802.11n and also support BLUETOOTH 4.2 2.5GbE LAN Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition. PCIe 4.0 Hardware Design GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
