Audio	Realtek® ALC1220 CODEC
Chipset	AMD X870
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

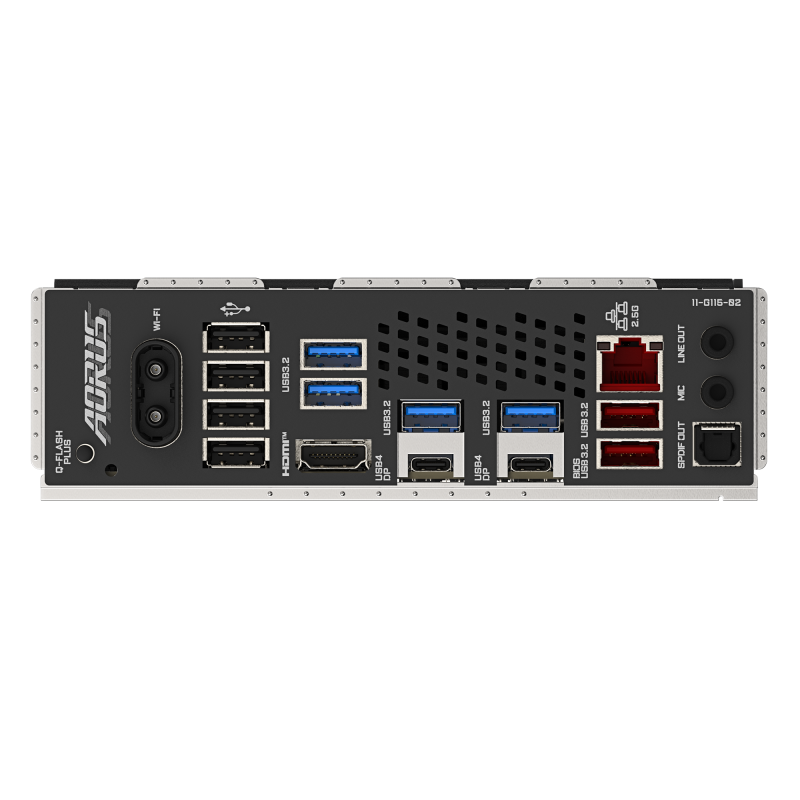

I/O Connectors	Back Panel Connectors: 1 x Q-Flash Plus button, 1 x HDMI port, 2 x antenna connectors (2T2R), 2 x USB4® USB Type-C® ports (DisplayPort), 2 x USB 3.2 Gen 2 Type-A ports (red), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/PDIF Out connector, 2 x audio jacks
Integrated CPU Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz; Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
PCI Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode; Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Processor Support	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
RAID	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAM Type/Bus/Max	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Socket	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Wireless & Bluetooth	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard

Key Features AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 16+2+2 phases VRM solution Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click：M.2 heatsinks with screwless design Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4 Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
