Ip-Com (M20-8G-PoE) 9 Port Cloud Managed PoE Router M20-8G-PoE
SKU
409212
Brand
MPN
M20-8G-PoE
Warranty
Standard Manufacturer's Warranty
$177.00
Buy Now And Earn 177 Reward Points!

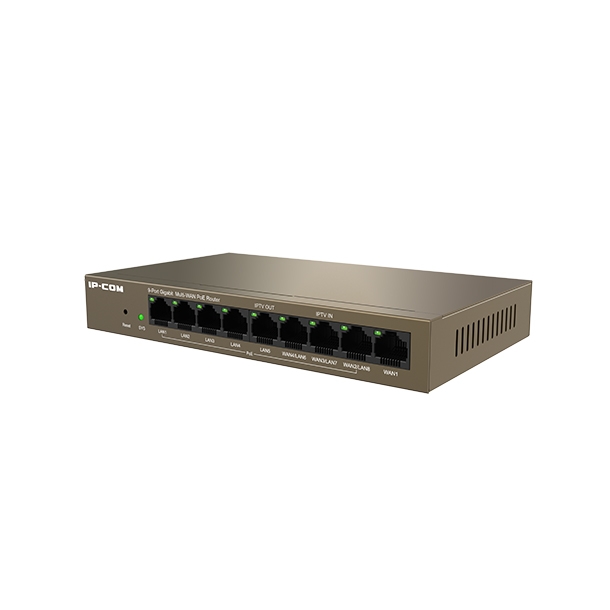

IP-COM M20-8G-PoE 9 Port Cloud Managed PoE Router
•Integrates router, PoE switch, and AP controller altogether
•Dual-Core CPU provides 1Gbps Forwarding performance
•Dual working mode: Router Mode with AC or AC only
•Up to 4× GE WAN Ethernet Ports with load balancing supported
•8× 802.3at/af-compliant GE PoE+ ports , PoE budget 95W
•Supports IPsec VPN, and L2TP/PPTP VPN connections
•Efficient firewall to ensure internal and external network security
•Web UI/Cloud Web/APP Management
•Integrates router, PoE switch, and AP controller altogether
•Dual-Core CPU provides 1Gbps Forwarding performance
•Dual working mode: Router Mode with AC or AC only
•Up to 4× GE WAN Ethernet Ports with load balancing supported
•8× 802.3at/af-compliant GE PoE+ ports , PoE budget 95W
•Supports IPsec VPN, and L2TP/PPTP VPN connections
•Efficient firewall to ensure internal and external network security
•Web UI/Cloud Web/APP Management
| CPU | Dual-Core CPU |
|---|---|
| Brand | IP-COM |
| Model | M20-8G-PoE |
| Weight | 1500 g |
| Features | Integrates router, PoE switch and access controller Intelligent load balancing and link redundancy between multiple WAN ports Pass-through traffic support Network diagnosis: port status, negotiation rate, DHCP status, broadcast/loop detection, WAN settings/status, DNS, latency and DHCP intrusion detection Smart bandwidth management: per-host limits or actual bandwidth assignment Wireless optimization for enterprise/office scenarios Multiple authentication methods: web, email, SMS, random code, PPPoE and others |
| Warranty | 3 year factory warranty |
| LAN Speed | 1 Gbps (Gigabit) |
| PoE Ports | 8 × PoE+ |
| SFP_Ports | 0 |
| USB_Ports | 0 |
| WAN Ports | Up to 4 × WAN Ethernet ports (supports load balancing and bandwidth stacking) |
| WAN Speed | 1 Gbps (Gigabit) |
| Port Count | 9 (includes 8 PoE+ LAN ports; supports up to 4 WAN Ethernet ports) |
| Description | The IP-COM M20-8G-PoE is a 9-port cloud-managed PoE router that integrates a router, PoE switch and access controller. It provides 8x 802.3at/af PoE+ ports with a 95W total PoE budget, up to 4 WAN Ethernet ports with intelligent load balancing and link redundancy, and 1 Gbps forwarding performance driven by a dual-core CPU. The device supports IPSec, PPTP and L2TP VPNs, cloud management, network diagnosis tools and centralized AP management for small business networks. |
| PoE Standard | 802.3at / 802.3af (PoE+) |
| Product Type | 9-Port Cloud Managed PoE Router |
| AP Management | Can manage up to 128 APs in router mode and up to 256 APs in AC mode |
| Product Title | IP-COM M20-8G-PoE 9-Port Cloud Managed PoE Router (8x PoE+, 95W) |
| VPN Protocols | IPSec PPTP L2TP |
| Total PoE Power | 95W |
| Cloud Management | Cloud-managed (supports IP-COM cloud management / ProFi Cloud) |
| Datasheet Available | Yes |
| Firewall / Security | Efficient firewall with attack defense functions IP and MAC address binding Address-based filtering URL filtering |
| Forwarding Performance | 1 Gbps |
IP-COM (M20-8G-PoE) 9 Port Cloud Managed PoE Router
