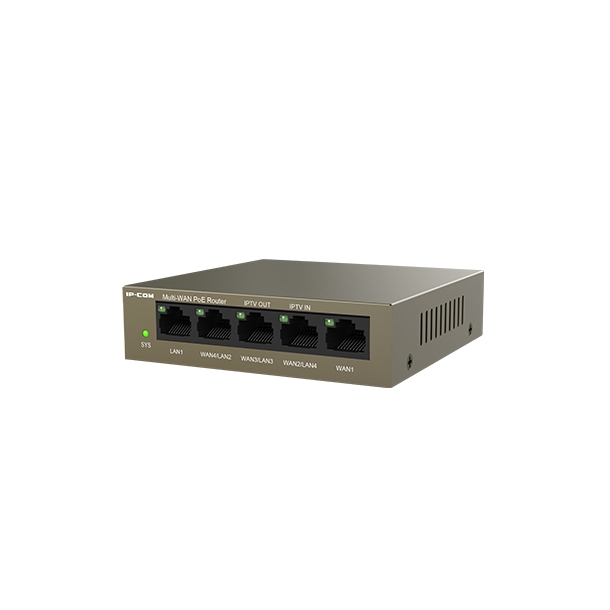

Ip-Com (M20-PoE) 5 Port Cloud Managed PoE Router M20-PoE
SKU
409213
Brand
MPN
M20-PoE
Warranty
Standard Manufacturer's Warranty
$147.00
Buy Now And Earn 147 Reward Points!
IP-COM M20-PoE 5 Port Cloud Managed PoE Router
•Integrates router, PoE switch, and AP controller altogether
•Dual-Core CPU provides 1Gbps Forwarding performance
•Up to 4× GE WAN Ethernet Ports with load balancing supported
•4× 802.3at/af-compliant GE PoE+ ports , PoE budget 55W
•Supports IPsec VPN, and L2TP/PPTP VPN connections
•Efficient firewall to ensure internal and external network security
•Web UI/Cloud Web/APP Management
•Integrates router, PoE switch, and AP controller altogether
•Dual-Core CPU provides 1Gbps Forwarding performance
•Up to 4× GE WAN Ethernet Ports with load balancing supported
•4× 802.3at/af-compliant GE PoE+ ports , PoE budget 55W
•Supports IPsec VPN, and L2TP/PPTP VPN connections
•Efficient firewall to ensure internal and external network security
•Web UI/Cloud Web/APP Management
| CPU | Dual-Core |
|---|---|
| SKU | M20-PoE |
| Brand | IP-COM |
| Model | M20-PoE |
| Notes | PoE standard: 802.3at/af Described as '5-Port Gigabit PoE Router' on multiple sources |
| Category | Networking |
| Features | Integrates router, PoE switch and access controller Dedicated PoE+ ports for APs, IP cameras and IP phones Supports pass-through traffic Easy installation |
| Base Type | Enterprise Wired Router |
| PoE Ports | 4 x 802.3at/af (PoE+) |
| Management | Cloud-managed (ProFi Cloud remote monitoring and maintenance) |
| PoE Budget | 55W (total) |
| Description | The IP-COM M20-PoE is a compact, cloud-managed router that integrates routing, a PoE switch and an AP controller in one device. It provides 5 Gigabit Ethernet ports including four 802.3at/af PoE+ ports with a total PoE budget of 55W, delivering up to 1 Gbps forwarding performance via a dual-core CPU. The M20-PoE supports up to four WAN ports with intelligent routing, automatic and custom load balancing and bandwidth overlay across up to four broadband lines (stacking efficiency up to 98%). Built-in VPN support (IPSec, PPTP, L2TP), firewall and attack-defense features, MAC/URL filtering, AP management and cloud remote monitoring make it suitable for small business and enterprise edge deployments. Compact design supports desktop and wall-mount installation. |
| Sub-Category | Routers and Components |
| Model Variant | v3.0 |
| Product Title | IP-COM M20-PoE 5-Port Cloud-Managed PoE Router (4x PoE+) |
| VPN Protocols | IPSec PPTP L2TP |
| WAN Ports (max) | Up to 4 WAN Ethernet ports |
| Network Diagnosis | Port connection status Port negotiation rate DHCP service status Broadcast/loop detection WAN port settings/status detection DNS and latency checks DHCP server intrusion detection |
| Controller Function | Built-in AP controller (wireless optimization, channel and power optimization, roaming improvement) |
| Security & Firewall | Efficient firewall with attack defense SLI MAC address binding MAC address-based filtering URL filtering |
| Total Ethernet Ports | 5 x Gigabit Ethernet |
| Authentication Methods | Web E-mail SMS Random Code PPPoE |
| Form Factor / Mounting | Compact design; desktop or wall-mount |
| Forwarding Performance | 1 Gbps |
| Bandwidth & Load Balancing | Intelligent routing Automatic load balancing Custom load balancing Bandwidth overlay/stacking across up to 4 broadband lines (stacking efficiency up to 98%) Smart/custom bandwidth management |
IP-COM (M20-PoE) 5 Port Cloud Managed PoE Router
