Apl-Meraki Dual-Band Omni Antennas MA-ANT-20
SKU
450319
Brand
MPN
MA-ANT-20
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$333.00
Buy Now And Earn 333 Reward Points!

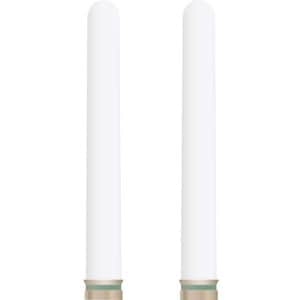

The Meraki MA-ANT-20 antenna is a multi-band, omni-directional antenna designed for use with Meraki APs that have N-type connectors. It is a versatile antenna and is suitable for a broad range of applications. The MA-ANT-20 is sold in sets of 2.
| Application/Usage | Wireless Data Network |
| Product Type | Antenna |
| Form Factor | Direct Mount |
| Brand Name | Cisco Meraki |
| Directivity | Omni-directional |
| Frequency Band Type | SHF, UHF |
| Antenna Gain (Isotropic) | 7 dBi |
| Manufacturer Part Number | MA-ANT-20 |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Packaged Quantity | 2 |
| Manufacturer | Cisco Systems, Inc |
| Product Model | MA-ANT-20 |
| Product Name | 4/7 dBi Dual-Band Omni Antenna Set (MA-ANT-20) |
| Connector Type | N-Type |
| Compatibility | Meraki Wireless Access Points: • MR58 • MR62 • MR66 • MR72 |
| Weight (Approximate) | 77.1 g |
| Diameter | 25.4 mm |
| Height | 180.3 mm |
| Operating Frequency Range | 5.15 GHz to 5.875 GHz, 2.4 GHz to 2.5 GHz |
| Shipping Dimensions | Height 5.2, Width 7.1, Length 23, Shipping Weight 0.19 KG |
