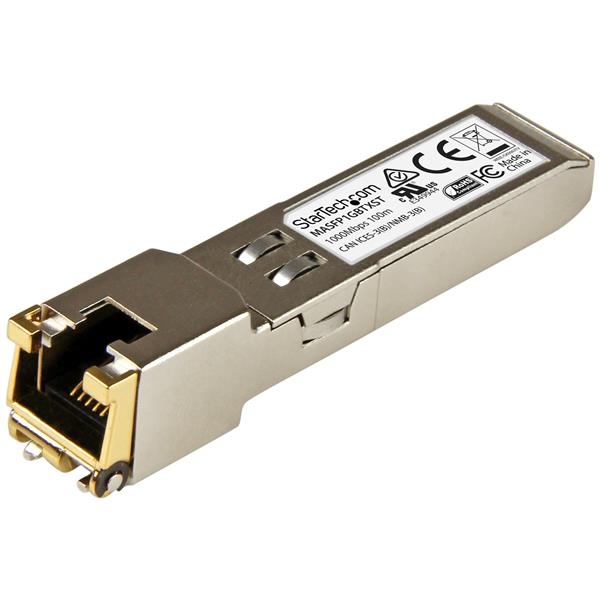

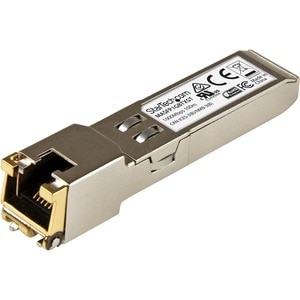

Startech Cisco Meraki Ma-sfp-1gb-tx Compatible Sfp - Gigabit Rj45 Copper 1000base-t Sfp Transceiver
QUICK OVERVIEW
This Cisco Meraki® compatible copper SFP is engineered by StarTech.com to deliver what you need most in your network connections: reliable performance. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality Gb RJ45 copper SFP can be installed into Cisco Meraki networking devices that support the Cisco Meraki MA-SFP-1GB-TX transceiver module, as well as other major brands of networking equipment.
The SFP transceiver provides 10Base-T / 100Base-TX / 1000Base-T throughput over a distance of up to 100 m (328 ft.) using a copper RJ-45 connection. It provides a dependable and cost-effective way to add, replace or upgrade a copper Ethernet port on your networking equipment, and it's backed by a lifetime warranty.
Built for reliable network performance
This Gigabit RJ45 copper SFP is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.
Fully compatible with Cisco Meraki and other major brands
This Gigabit Copper SFP is engineered to the highest quality standards and is 100% Cisco Meraki compatible, equivalent to the Cisco Meraki MA-SFP-1GB-TX transceiver. The StarTech.com transceiver is configured and fully tested to ensure it works seamlessly with Cisco Meraki or other major brands of networking equipment.
You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.
Convenient and scalable
Delivering both convenience and scalability, this SFP is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and convenient solution that’s compatible with a multitude of multi and single-port Gigabit Ethernet networking devices.
Ideal for use in HP switches, routers and other networking equipment, the SFP provides reliable performance, enabling you to expand your network to remote segments cost-effectively. The SFP supports auto-negotiation, maximum distance of up to 100 m (328 ft.), and maximum data rates of up to 1000Mbps.
You can count on MASFP1GBTXST for reliable performance, backed by a lifetime warranty and free lifetime technical support.
Connector(s) | |
Local Unit Connectors | RJ-45 Female |
Environmental | |
Humidity | 5~95% RH |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Storage Temperature | -40?C to 85?C (-40?F to 185?F) |
Hardware | |
Compatible Brand | Cisco Meraki |
Industry Standards | IEEE 802.3ab 1000BASE-T |
IEEE 802.3i 10BASE-T | |
IEEE 802.3u 100BASE-TX | |
Packaging Information | |
Shipping (Package) Weight | 95 g [3.4 oz] |
Performance | |
Auto MDIX | Yes |
Compatible Networks | 10/100/1000 Mbps |
DDM | No |
Fiber Operating Mode | Full-Duplex |
Max Transfer Distance | 100 m (328 ft) |
Maximum Data Transfer Rate | 1000 Mbps |
MTBF | 4,655,371 hours |
Physical Characteristics | |
Color | Silver |
Enclosure Type | Aluminum |
Product Height | 13.8 mm [0.5 in] |
Product Length | 68 mm [2.7 in] |
Product Weight | 22 g [0.8 oz] |
Product Width | 18 mm [0.7 in] |
Special Notes / Requirements | |
System and Cable Requirements | For use in 1 Gigabit networking equipment and media converters |
MSA or Cisco Meraki compliant SFP port | |
What's in the Box | |
Included in Package | SFP transceiver |
Marketing Text | Reliable performance. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality Gb RJ45 copper SFP can be installed into Cisco Meraki networking devices that support the Cisco Meraki MA-SFP-1GB-TX transceiver module, as well as other major brands of networking equipment. |
PI Date | Jun 2017 |
Brand Name | Startech |
Manufacturer Web Site | http://www.startech.com |
Form Factor | SFP |
Product Type | Transceivers Module |
Connector | Duplex LC |
Data Transfer Rate | 1000Mbps |
Maximum Transmission Distance | 100meter |
Depth (mm) | 68.0 |
Height (mm) | 13.8 |
Width (mm) | 18.0 |
Weight (Grams) | 22.0 |
Other Features | * RJ45 copper interface * Supports auto-negotiation * Hot Pluggable |
