DESCRIPTION

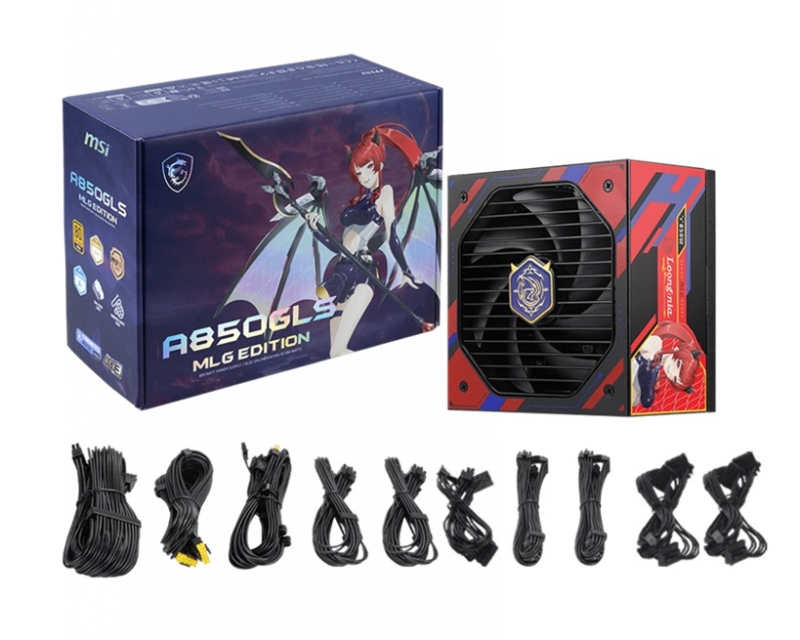

MSI MAG A850GLS MLG EDITION, Gold Fully Modular Silent Power Supply MLG Edition

•Supports Nvidia® GeForce RTX™ 50 series graphics cards
•Native 12V-2x6 connector
•Dual-color 12V-2x6 cable
•80 PLUS Gold certified
•Optimized the sound level
•Main 105oC capacitor
•Embossed Jacket Cables, the cables are more bending and routing
•Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

SPECIFICATIONS
Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (full modular)
Fan Size 135 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 150 x 150 x 86 mm
PFC Type Active PFC
Input Voltage Range 100-240V~
Power Watt 850W
Power Excursion 1870W (*up to 220% of the PSU's rated power for
100μs)
Input Frequency Range 47-63 Hz
Protection OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
ATX (24 pin) 1
EPS (8 pin) 2
PCI-E 5.1 (16 pin) 1 (600W)
PCI-E (6+2 pin) 4
SATA (15 pin) 8
PERIPHERAL (4 pin) 3
FDD (4 pin) 1
