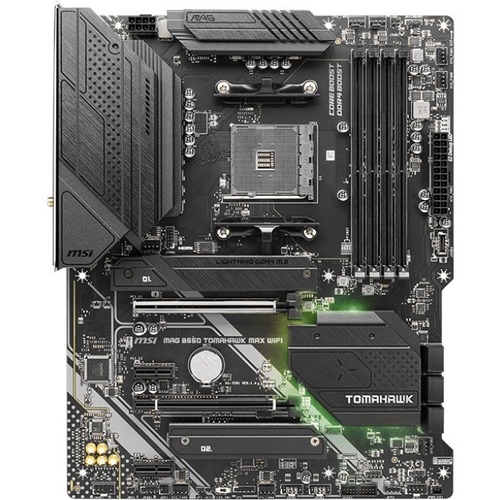

MSI MAG B550 TOMAHAWK MAX WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX - Ryzen, Ryzen 5, Ryzen 3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HD MAG
MSI MAG B550 TOMAHAWK MAX WIFI Desktop Motherboard - AMD B550 Chipset - Socket AM4 - ATX - Ryzen, Ryzen 5, Ryzen 3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
| Audio Channels | 7.1 |
| Brand Compatibility | AMD |
| Onboard Video | CPU Dependent Video |
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
| Number of PCI Express x1 Slots | 2 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 4 |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 2 |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 2133 MHz |
| 2400 MHz | |
| 2666 MHz | |
| 2933 MHz | |
| 3000 MHz | |
| 3200 MHz | |
| 3300 MHz | |
| 3333 MHz | |
| 3400 MHz | |
| 3466 MHz | |
| 3600 MHz | |
| 3733 MHz | |
| 3866 MHz | |
| 4000 MHz | |
| 4133 MHz | |
| 4200 MHz | |
| 4266 MHz | |
| 4300 MHz | |
| 4400 MHz | |
| 4533 MHz | |
| 4600 MHz | |
| 4800 MHz | |
| 4866 MHz | |
| 5000 MHz | |
| 5100 MHz |
| RAID Levels | 10 |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | MAG B550 TOMAHAWK MAXWIFI |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | B550 TOMAHAWK MAX WIFI |
| Product Name | B550 TOMAHAWK MAX WIFI Desktop Motherboard |
| Product Line | MAG |
| Brand Name | MSI |
| Processor Supported | Ryzen |
| Ryzen 3 | |
| Ryzen 5 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Multi GPU Supported | CrossFire |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
