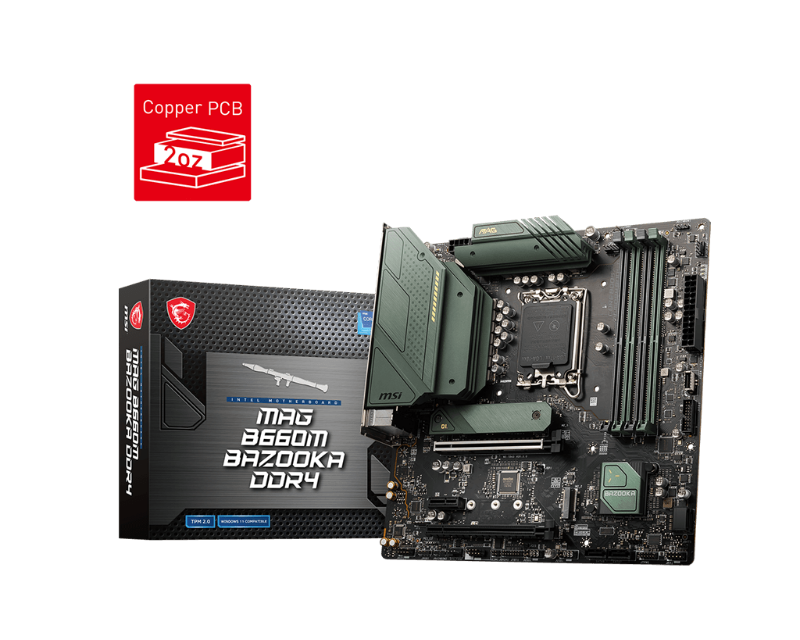

MSI MAG B660M BAZOOKA DDR4 MAG B660M BAZOOKA DDR4
SKU
380487
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
Audio
| Audio Channels | 7.1 |
Miscellaneous
| Brand Compatibility | Intel |
Network & Communication
| 2.5Gigabit Ethernet | Yes |
Video
| Onboard Video | CPU Dependent Video |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 243.8 mm |
| Depth | 243.8 mm |
I/O Expansions
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 3.2 Ports | 3 |
Memory
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 4800 MHz |
| 4266 MHz | |
| 4200 MHz | |
| 4600 MHz | |
| 3200 MHz | |
| 4400 MHz | |
| 3733 MHz | |
| 3400 MHz | |
| 2933 MHz | |
| 3466 MHz | |
| 2133 MHz | |
| 3333 MHz | |
| 2666 MHz | |
| 2400 MHz | |
| 4000 MHz | |
| 3800 MHz | |
| 3600 MHz | |
| Intel Optane Memory Ready | Yes |
I/O Controller
| RAID Levels | 10 |
| 1 | |
| 5 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Interfaces/Ports
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | MAG B660M BAZOOKA DDR4 |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | B660M BAZOOKA DDR4 |
| Product Name | MAG B660M BAZOOKA DDR4 Desktop Motherboard |
| Product Line | MAG |
| Brand Name | MSI |
Processor & Chipset
| Processor Supported | Core i5 |
| Core i9 | |
| Core i7 | |
| Pentium Gold | |
| Core i3 | |
| Celeron | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Chipset Model | B660 |
| Multi GPU Supported | CrossFire |
| Processor Generation Supported | 12th Gen |
