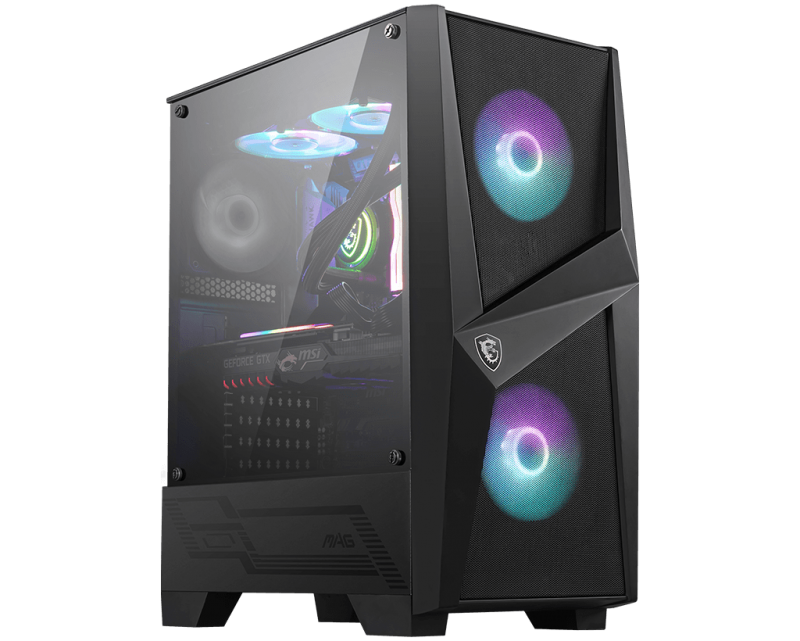

Product Name MAG Forge 100R
I/O Ports 2 x USB 3.2 Gen1 Type-A / 1 x HD Audio / 1
x Mic
Driver Bays 2 x 3.5” (compatible with 2.5”) + 3 x 2.5”
Case Expansion Slots 7
Maximum GPU Length 330 mm
Maximum CPU Cooler Length 160 mm
Power Supply Standard ATX 160 mm, max to 200 mm
(without 3.5” HDD case installed)
Cooling Layout
Front: Up to 3 x 120 mm / 2 x 140 mm
Top: Up to 2 x 120 mm / 2 x 140 mm
Rear: Up to 1 x 120 mm
Pre-install Fan
Front: 2 x 120 mm addressable RGB LED
Fan included
Rear: 1 x 120 mm System Fan included
RADIATOR LAYOUT
Front: Up to 240 mm
Top: Up to 240 mm
Rear: Up to 120 mm
Form Factor Mid-Tower
Support MB Form Factor ATX / mATX / Mini-ITX
Dimension 421(D) x 210(W) x 499(H) mm
17.05(D) x 8.27(W) x 19.65(H) inch
Weight 5.64 kg

MSI MAG FORGE 100R Mid-Tower Case, 2x USB 3.2, 1x Audio, 1x Mic, 7x Expansion Slots, 2x 3.5', 3x 2.5', ATX / mATX / Mini-ITX
