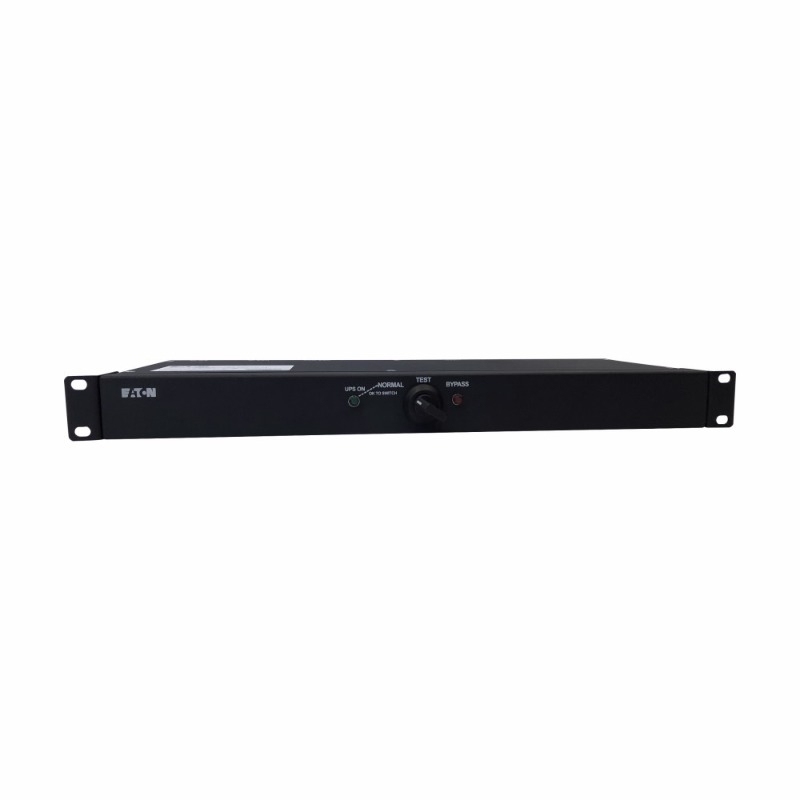

Eaton HotSwap Maintenance Bypass 10A. C14 Input, 4 X C13 Outlet MBP10A
SKU
389980
Brand
MPN
MBP10A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$760.00
Buy Now And Earn 760 Reward Points!
Eaton HotSwap Maintenance Bypass 10A. C14 Input, 4 x C13 outlet
| MPN | MBP10A |
|---|---|
| Brand | Eaton |
| Color | Black |
| Model | MBP10A |
| Features | HotSwap maintenance bypass for uninterrupted power during maintenance Rack-mountable 19" 1U form factor Suitable for line-interactive and online double-conversion UPS topologies Optional wall-mount vertically or horizontally (per manufacturer notes) |
| Warranty | Manufacturer's standard warranty (1 year / 12 months) |
| Feed Type | 1 |
| Frequency | 50–60 Hz |
| Weight_kg | 3.8 |
| Dimensions | Depth_mm: 188 Width_mm: 483 Height_mm: 44 |
| Description | The Eaton HotSwap MBP10A is a 10A maintenance bypass switch (HotSwap) designed to provide uninterrupted power continuity during UPS maintenance or replacement. It features a C14 input and four IEC 60320 C13 outputs, a 230V nominal design (220/230/240V supported) with 192–264V input/output range and 50–60 Hz operation. Rack-mountable (19", 1U) and compatible with Eaton UPS models including 5P, 5PX, 5SX, 9PX and 1–2 kVA units, the MBP10A supports line-interactive and online double-conversion topologies. The unit includes a user guide and is available with manufacturer standard warranty. |
| Form Factor | Rack-mountable, 19" (482.6 mm) device, 1U |
| Input Phase | Single-phase |
| Manufacturer | Eaton |
| Output Phase | Single-phase |
| Product Type | Maintenance bypass switch (HotSwap) / Bypass PDU |
| Communication | None |
| Compatibility | Eaton 5P Eaton 5PX Eaton 5SX Eaton 9PX Eaton 1–2 kVA UPS |
| Product Title | Eaton HotSwap MBP10A Maintenance Bypass 10A — C14 Input, 4 x C13 Outputs, 19" 1U Rack |
| Transfer Time | 8 ms |
| Certifications | Not specified (contact manufacturer) |
| Maximum Current | 10 A |
| Input Connection | IEC 60320 C14 |
| Construction Type | 19 inch (482.6 mm) rack device |
| Number of Outputs | 4 |
| Output Connectors | IEC 60320 C13 (4) |
| Operating Altitude | 0–1500 m (0° to 40°C); 1500–3000 m (0° to 35°C) |
| Input Voltage Range | 192–264 V |
| Included Accessories | Eaton MBP10A unit User guide |
| Output Voltage Range | 192–264 V |
| Nominal Input Voltage | 230 V (default) |
| Auto Shutdown Function | No |
| Nominal Output Voltage | 230 V (220/230/240 V supported) |
| Potential Free Switch Contact | No |
Eaton HotSwap Maintenance Bypass 10A. C14 Input, 4 x C13 outlet
