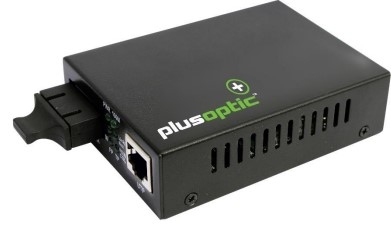

The Plusoptic MC-MM-1000MB-SC is a 10/100/100 SFP Media Converter that seamlessly connects Multimode fibre to copper. This device offers a flexible fibre to copper solution with a reach of up to 550M over multimode fibre.

The Plusoptic MC-MM-1000MB-SC is ideal for
Seamlessly Connecting 10/100/1000Base-T to 100/1000Base-X
Seamlessly Connecting 10/100 devices to Gigabit Infrastructure
Extending the reach of your network in a cost-effective manner
Extending the life and increasing the relevance for dated non-fibre equipment
FEATURES
Automatic Speed Adjustment: This media converter will automatically sense whether a Gigabit Ethernet or Fast Ethernet SFP is being utilised and automatically adjust
Auto Negotiation: This media converter automatically negotiates rate and full/half duplex at the twisted pair port
MDI/MDIX: Auto MDI/MDIX is supported without the need for cable selection and automatically configures the connection
Conflicting Frames Detection: Supports half-duplex and flow control in full duplex
Stand Alone or Rack Mounted: Up to 14 modules in a 1RU Chassis
Dual Power: Includes External and built in DC Power Supplies
In accordance with IEEE802.3 10Base-T, IEEE802.3u 100Base-T,
IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX
Up to 6 LEDs for status indication of optical power port and UTP port
Up to 1024 MAC addresses supported
512kb data storage integrated, and 802.1X original MAC address authentication supported
Conflicting frames detection in half-duplex and flow control in full duplex supported
WARRANTY

1-year limited warranty
