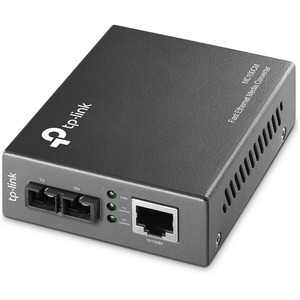

TP-Link 10/100Mbps RJ45 To 100Mbps Multi-mode Sc Fiber Converter - (MC100CM) MC100CM
SKU
433753
Brand
MPN
MC100CM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$45.00
Buy Now And Earn 45 Reward Points!
10/100Mbps RJ45 to 100Mbps multi-mode SC fiber Converter, Full-duplex, up to 2Km, switching power adapter, chassis TL-MC1400 rack-mountable
| MPN | TPLMC100CM |
|---|---|
| UPC | 845973030391 |
| Brand | TP-Link |
| Model | MC100CM |
| Notes | Multiple sources indicate this model supports LX (1310 nm) multi-mode operation to 2 km and is compatible with TP-Link chassis solutions. |
| Ports | Fiber: 1 x 100 Mbps SC/UPC (multi-mode) Copper: 1 x 10/100 Mbps RJ45 (Auto MDI/MDIX) |
| Power | Power Source: External power adapter Included Adapter: DC 9V 0.6A (power adapter included) |
| Features | Converts 100Base-FX fiber to 10/100Base-TX copper and vice versa Auto MDI/MDIX on TX port Link Fault PassThrough and Far End Fault Standalone or chassis-mountable (compatible with TP-Link TL-MC1400 chassis) |
| Data Rate | 10/100 Mbps (Fast Ethernet) |
| Dimensions | Depth: 2.9 in (73.0 mm) Width: 3.7 in (94.5 mm) Height: 1.1 in (27.0 mm) |
| Description | The TP-Link MC100CM is an external media converter that links 100Base-FX multi-mode fiber (SC/UPC) to 10/100Base-TX copper (RJ45). Compliant with IEEE 802.3/802.3u standards and using longwave (LX) laser technology at 1310 nm, it provides full wire-speed conversion for Fast Ethernet and extends multi-mode fiber connections up to 2 km (1.2 miles). The unit supports auto-negotiation and Auto MDI/MDIX on the TX port, configurable half/full-duplex on the FX port, full-duplex flow control (IEEE 802.3x) and half-duplex backpressure, Link Fault PassThrough and Far End Fault. The MC100CM can operate standalone or be mounted in a compatible TP-Link chassis, and ships with an external DC power adapter and installation guide. |
| Form Factor | External (standalone) — chassis mountable |
| Flow Control | Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Type | Media Converter / Transceiver |
| Environmental | Storage Humidity: 5% to 90% non-condensing Operating Humidity: 10% to 90% non-condensing Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Product Title | TP-Link MC100CM 10/100Mbps Multi-Mode SC Media Converter |
| Certifications | FCC CE RoHS |
| LED Indicators | PWR FX Link/Act TP (TX) Link/Act FDX/Col SPD |
| Package Content | MC100CM media converter Power adapter Installation guide |
| Auto-Negotiation | Yes (TX port); configurable half/full duplex for FX port |
| Country of Origin | China |
| Optical Wavelength | 1310 nm (LX) |
| Fiber Connector Type | SC / SC-UPC |
| Fiber Mode Supported | Multi-mode |
| Standards and Protocols | IEEE 802.3 IEEE 802.3u (10/100Base-TX, 100Base-FX) IEEE 802.3x (Flow Control) |
| Network Media (10BASE-T) | 2-pair UTP/STP Cat 3 or above (≤100 m) |
| Maximum Power Consumption | Approximately 2.4 W |
| Maximum Distance Supported | 2 km (1.2 miles) over multi-mode fiber |
| Network Media (100BASE-TX) | 2-pair UTP/STP Cat 5 or above (≤100 m) |
TP-Link 10/100Mbps RJ45 to 100Mbps multi-mode SC fiber Converter - (MC100CM)
