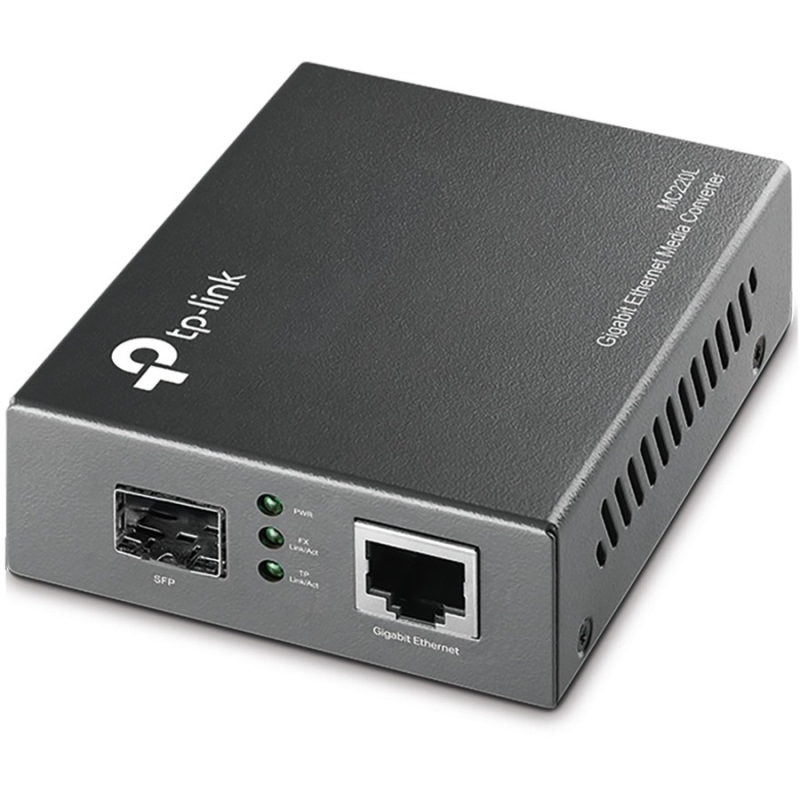

TP-Link 1000Mbps RJ45 To 1000Mbps Sfp Slot Supporting MiniGBIC Modules, Switching Power Adapter, Chassis Tl-Mc1400 Rack-mountable - (MC210CS) MC220L
SKU
439343
Brand
MPN
MC220L
Warranty
Standard Manufacturer's Warranty
$36.00
Buy Now And Earn 36 Reward Points!
1000Mbps RJ45 to 1000Mbps SFP slot supporting MiniGBIC modules, switching power adapter, chassis TL-MC1400 rack-mountable
| UPC | 840460604567 845973030476 |
|---|---|
| ASIN | B003CFATL0 |
| GTIN | 00845973030476 |
| Brand | TP-Link |
| Color | Grey |
| Model | MC220L |
| Notes | Maximum fiber transmission distance and wavelength depend on the SFP module used. Consult SFP module specifications for reach and connector type. |
| Ports | 1 × Gigabit SFP port (FX), 1 × 10/100/1000Base-T RJ45 port (Auto MDI/MDIX) |
| FX Port | Hot-swappable (SFP) |
| Category | Networking |
| SFP Type | SFP (mini-GBIC) — not SFP+; SFP module and connector type depend on module (SC/LC referenced in documentation) |
| Dimensions | 3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm) |
| Wavelength | Depends on SFP module; typical examples: 850 nm (multi-mode), 1310 nm (single-mode) |
| Description | The TP-Link MC220L is a compact gigabit media converter that converts between 1000BASE-SX/LX/LH fiber and 10/100/1000Base-T copper. It accepts hot-swappable SFP modules (multi-mode or single-mode) to extend network distance, supports auto-negotiation and Auto MDI/MDIX on the RJ45 port, and offers plug-and-play operation with front-panel LEDs for status monitoring. The unit can be used standalone, mounted on a wall, or inserted into compatible chassis (e.g., MC1400/TL-MC1400). Low power consumption and regulatory certifications make it suitable for point-to-point links, building-to-building connections, and remote surveillance. |
| Item Weight | 4.8 ounces |
| Flow Control | IEEE 802.3x Full Duplex Flow Control supported |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Power Supply | External Power Adapter (included) |
| Product Type | Gigabit SFP Media Converter |
| Sub-Category | Transceivers and Converters |
| Product Title | TP-Link MC220L Gigabit SFP to RJ45 Media Converter |
| LED Indicators | PWR, Link/Act (RX/LX indicated by link/activity LEDs) |
| Auto-Negotiation | RJ45 port supports auto-negotiation of speed and duplex; supports Half/Full Duplex |
| Package Contents | MC220L media converter, Power adapter, Installation guide |
| Storage Humidity | 5% to 90% non-condensing |
| Country of Origin | Vietnam |
| Power Consumption | Max 1.7 W (on-mode 1.7 W) |
| Data Transfer Rate | 1000 Mbps (1 Gbps) |
| Network Technology | 1000Base-T; 1000Base-X (SX/LX/LH) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Temperature | -40°C to 70°C |
| Operating Temperature | 0°C to 40°C (some documentation lists up to 50°C) |
| Supported Fiber Modes | Multi-mode and Single-mode (via SFP module) |
| Form Factor / Mounting | External desktop; wall-mountable; chassis-mountable (compatible with TP-Link MC1400/TL-MC1400 chassis) |
| Network Media (Copper) | UTP Category 5/5e (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m) |
| Standards and Protocols | IEEE 802.3i (10BASE-T) IEEE 802.3u (100BASE-TX) IEEE 802.3ab (1000BASE-T) IEEE 802.3z (1000BASE-X) IEEE 802.3x (Flow Control) |
| Typical Fiber Distances | Multi-mode: up to 0.55 km (550 m); Single-mode: up to 10 km (some sources note compatibility with SFPs supporting longer reaches, e.g., 20 km) |
| Manufacturer Part Number | MC220L |
| Certifications / Safety & Emission | FCC, CE, RoHS; UL-certified power adapter reported |
| Alternative Part Numbers / Variants | MC220LCDW, MC220L(UN) Ver 4 |
TP-Link 1000Mbps RJ45 to 1000Mbps SFP slot supporting MiniGBIC modules, switching power adapter, chassis TL-MC1400 rack-mountable - (MC210CS)
