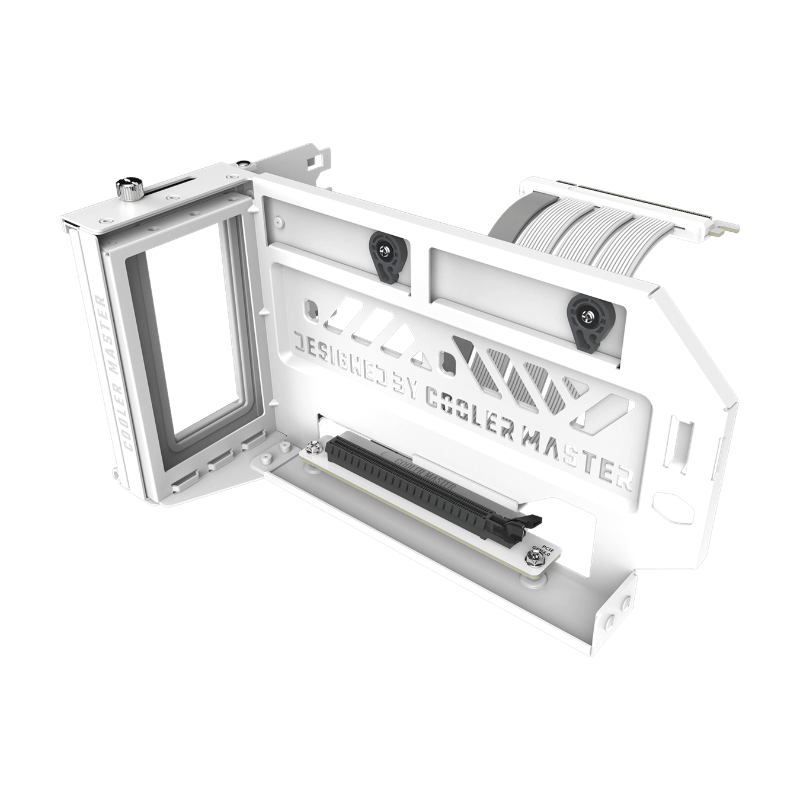

Cooler Master White Universal Vertical VGA Card Holder V3 + PCI-E X16 4.0 165MM Riser Cabl MCA-U000R-WFVK03
SKU
396100
Brand
MPN
MCA-U000R-WFVK03
Warranty
Standard Manufacturer's Warranty
$94.00
Buy Now And Earn 94 Reward Points!
Supporting cases ranging in size from m-ATX to ATX, and featuring a removable adjustable GPU bracket, this remastered design allows unprecedented compatibility with various builds and setups. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at uncompromised speeds.
| Series | Others |
| Weight | 0.81 kg |
| Warranty | 1 year |
| Connectors | PCIe x16 Male to PCIe x16 90° Female |
| Compatibility | PCIe 4.0 and older |
| Other Materials | ABS, PP, SGCC Steel, Nickel, Gold, Brass |
| Riser Cable Model | Riser Cable PCIe 4.0 x16 |
| Required PCI slots | Minimum 4 PCI slots required for mounting |
| Insulation Materials | PE, TPE |
| Operating Temperature | -20° to +100° Celsius |
| PCB / Wire UL Numbers | E1895721 / E252840 |
| Dimensions (L x W x H) | GFX Holder kit: 249 x 148.1 x 141.8 mm (close size), GFX Holder kit: 305 x 178.1 x 141.8 mm (open size), Riser cable: 165mm (6.49in) |
| Supported Chassis Type | E-ATX, ATX, Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.) |
| CE Certifications Number | BKC210933AC |
| Supported Graphics Cards | Any length, up to 3 slots wide |
| Electronic Component Materials | PCBA, Tinned Copper Wire 30 AWG |
| Rated Working Voltage and Current | DC 12V / 5A |
Supporting cases ranging in size from m-ATX to ATX, and featuring a removable adjustable GPU bracket, this remastered design allows unprecedented compatibility with various builds and setups. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at uncompromised speeds.
