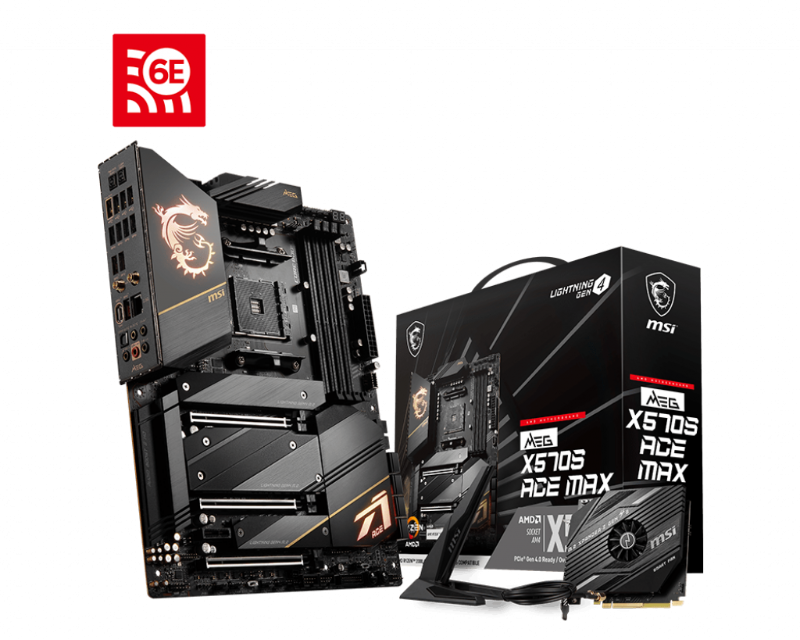

MSI MEG X570S ACE MAX Motherboard Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series
SKU
375969
Brand
MPN
MEG X570S ACE MAX
Warranty
Standard Manufacturer's Warranty
No Longer Available
$727.00
Buy Now And Earn 727 Reward Points!
QUICK OVERVIEW
3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Audio
| Audio Channels | 7.1 |
Miscellaneous
| Brand Compatibility | AMD |
Video
| Onboard Video | No |
Physical Characteristics
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
I/O Expansions
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 4 |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| 2.5Gigabit Ethernet | Yes |
Memory
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 3200 MHz |
| 4000 MHz | |
| 4400 MHz | |
| 2400 MHz | |
| 5100 MHz | |
| 3000 MHz | |
| 3066 MHz | |
| 3600 MHz | |
| 2133 MHz | |
| 2933 MHz | |
| 5300 MHz | |
| 2800 MHz | |
| 1866 MHz | |
| 5500 MHz | |
| 2667 MHz | |
| 4266 MHz |
I/O Controller
| RAID Levels | 1 |
| 10 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 3.2 Ports | 5 |
Interfaces/Ports
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | MEG X570S ACE MAX |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | X570S ACE MAX |
| Product Name | MEG X570S ACE MAX Desktop Motherboard |
| Product Line | MEG |
| Brand Name | MSI |
Processor & Chipset
| Processor Supported | Ryzen 7 |
| Ryzen 5 Pro | |
| Ryzen 9 | |
| Ryzen 3 PRO | |
| Ryzen 7 PRO | |
| Ryzen 5 | |
| Ryzen 3 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Chipset Manufacturer | AMD |
