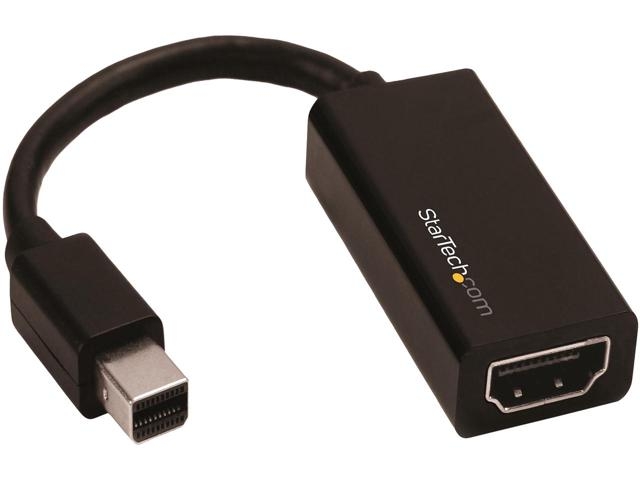

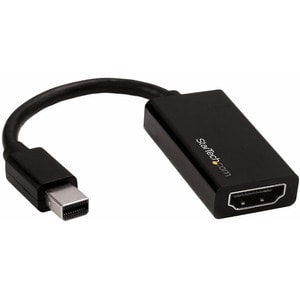

Startech Mini Displayport To Hdmi Adapter - Mdp To Hdmi Converter - Uhd 4k 60hz - Connect Your
SKU
234795
Brand
MPN
MDP2HD4K60S
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$52.00
Buy Now And Earn 52 Reward Points!
QUICK OVERVIEW
mDP computer to an HDMI display using this conv MDP2HD4K60S
Connect your mDP computer to an HDMI display using this converter, which supports UHD resolutions up to 4K at 60Hz
| .jpg) |
Astonishing picture quality with support for Ultra HD 4K at 60 Hz
The adapter lets you harness the video capabilities that are built into your Mini DisplayPort connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while using multiple monitors to work on resource-demanding applications.Unlike many 4K Mini DisplayPort to HDMI adapters that only support a 30Hz refresh rate, this adapter works with HDMI 2.0 displays that can deliver output resolutions of up to 3840 x 2160p at 60Hz. Support for HDMI 2.0 means this adapter can support bandwidth up to 18Gbps, making it an ideal solution for performing high-resolution tasks such as editing 4K video.
The adapter is backward compatible with 1080p displays, which ensures compatibility with lower resolution displays such as TVs or projectors around your home or office.
Ultimate portability with a compact, lightweight design
The compact video adapter is highly portable and lightweight. It’s the perfect accessory for your portable mDP devices, fitting easily into your laptop bag or carrying case.The portable adapter is the perfect accessory for deployment with company computers, enabling your employees to interface with BYOD (Bring Your Own Device) HDMI applications around the office, such as working at a hot-desk with an HDMI display or sharing your laptop’s screen on a boardroom projector.
Hassle-free setup with an active adapter that features plug-and-play installation
To ensure compatibility with any Mini DisplayPort output, the mDP adapter offers active conversion. Active video conversion is required to maintain 4K resolutions when converting Mini DisplayPort to HDMI. An active mDP adapter is also ideal for outputting 1080p resolutions by ensuring compatibility with graphics cards that are not capable of outputting multi-mode DP++ signals, such as ATI Eyefinity™ cards.Applications
- Connect your 4K 60Hz HDMI display to a Mini DisplayPort output port
- Deploy this adapter with company laptops to ensure your employees can interface with BYOD displays around the office
- Hassle-free setup with an active Mini DisplayPort conversion
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male Input |
| Connector B | HDMI (19 pin) Female Output |
| Environmental | |
| Humidity | -25?C to 85?C (77?F to 185?F) at 80% - 95% |
| Operating Temperature | 5?C to 35?C (41?F to 95?F) |
| Storage Temperature | -25?C to 70?C (13?F to 149?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Adapter Style | Adapters |
| Audio | Yes |
| Chipset ID | Parade - PS176 |
| Converter Type | Active |
| Industry Standards | DPCP (DisplayPort Content Protection) HDCP 2.2 (High Definition Content Protection) DisplayPort 1.2 HDMI 2.0 |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0.1 lb] |
| Performance | |
| Audio Specifications | 7.1 Surround Sound |
| Maximum Digital Resolutions | 4K x 2K @ 60 Hz |
| Supported Resolutions | 4k x 2K (Ultra HD) @ 60 Hz 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 148 mm [5.8 in] |
| Color | Black |
| Product Height | 10 mm [0.4 in] |
| Product Length | 152 mm [6 in] |
| Product Weight | 0 kg [0 lb] |
| Product Width | 22 mm [0.9 in] |
| Special Notes / Requirements | |
| Note | This video adapter is not compatible with cables that use RedMere? technology. |
| What's in the Box | |
| Included in Package | Mini DisplayPort to HDMI adapter |
