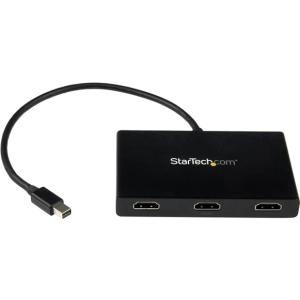

Startech Mini Displayport To Triple Head Hdmi Multi Monitor Mst Hub - Displayport 1.2 Multi Stream MSTMDP123HD
QUICK OVERVIEW
Connect three HDMI enabled monitors to your laptop or Ultrabook™, through a single Mini DisplayPort output. This MST hub lets you connect three HDMI® monitors to your Mini DisplayPort™ (mDP) 1.2 equipped Windows® laptop or desktop.
The hub features a newly engineered chipset that was specifically designed and rigorously tested to resolve compatibility issues with the Microsoft Surface™ Pro 3.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectors for remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MSTMDP123HD will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTMDP123HD supports plug-and-play installation for a hassle-free setup and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth for the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled. Some monitors limit available resolutions.
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male Output |
| Connector B | HDMI (19 pin) Female Output |
| Environmental | |
| Humidity | 50-90% |
| Operating Temperature | 0?C to 45?C (32?F to 113?F) |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Audio | Yes |
| Chipset ID | MegaChips - STDP4320 |
| Converter Type | MST Hub |
| Output Signal | HDMI |
| Ports | 3 |
| Packaging Information | |
| Shipping (Package) Weight | 519 g [18.3 oz] |
| Performance | |
| Maximum Digital Resolutions | 3840 x 2160 @30hz |
| Supported Resolutions | 1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440 2560x1600 3840 x 2160 (Ultra HD 4K) @30hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 14 mm [0.6 in] |
| Product Length | 114 mm [4.5 in] |
| Product Weight | 119 g [4.2 oz] |
| Product Width | 66 mm [2.6 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 110V-240V AC |
| Output Current | 3A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 15 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7(32/64) |
| What's in the Box | |
| Included in Package | Mini DisplayPort to 3x HDMI MST Hub |
| Quick install guide | |
| Universal power adapter (NA/EU/UK/AU) | |
This MST hub lets you connect three HDMI monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo™ Think Pad® and Microsoft® Surface™. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.
Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever, unfortunately this means you?re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Astonishing picture quality that won?t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.
The MSTMDP123HD is backed by a 2-year StarTech.com warranty and free lifetime technical support.
