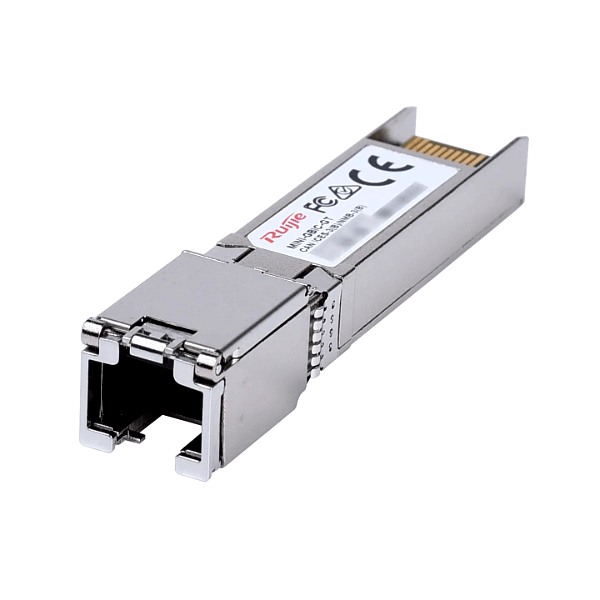

Ruijie Reyee 1000Base-Tx Sfp Transceiver - Copper (100M),3YR MINI-GBIC-GT
SKU
438366
Brand
MPN
MINI-GBIC-GT
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$196.00
Buy Now And Earn 196 Reward Points!
The Ruijie Reyee MINI-GBIC-GT is a 1000BASE-T Copper SFP Transceiver module that plugs into a network device's SFP/Mini-GBIC port, converting it to a standard RJ45 Ethernet port for copper cabling (Cat 5e/6/6a) to provide Gigabit (1Gbps) speeds up to 100 meters enabling flexible, hot-pluggable and high-speed connections between switches, servers and routers in enterprise networks.
Highlights
- 1000Base-T
- RJ45
- Cat 5e/6/6a
- 100M
Highlights
- 1000Base-T
- RJ45
- Cat 5e/6/6a
- 100M
| Reach | 100m |
| Weight | 35g |
| Data Rate | 1.25Gbps |
| Cable Type | Cat 5e/6/6a |
| Form Factor | SFP |
| Receiver Type | N/A |
| Connector Type | RJ45 |
| Wavelength (nm) | N/A |
| Transmitter Type | N/A |
| Power Consumption | ≤ 1.5W |
| Operating Humidity | 10% RH to 90% RH |
| Bit Error Ratio (BER) | N/A |
| Min Extinction Ratio | N/A |
| Operating Temperature | 0°C to 70°C |
| Dimensions (W x D x H) | 56.5mm x 13.5mm x 8.5mm |
| Max Transmit Power (AVG) | N/A |
| Min Transmit Power (AVG) | N/A |
| Receive Sensitivity (OMA) | N/A |
| Fiber End Face Finish Type | N/A |
| Overload Optical Power (AVG) | N/A |
| Data Diagnosis Capable (DDM/DOM) | No |
The Ruijie Reyee MINI-GBIC-GT is a 1000BASE-T Copper SFP Transceiver module that plugs into a network device's SFP/Mini-GBIC port, converting it to a standard RJ45 Ethernet port for copper cabling (Cat 5e/6/6a) to provide Gigabit (1Gbps) speeds up to 100 meters enabling flexible, hot-pluggable and high-speed connections between switches, servers and routers in enterprise networks.
