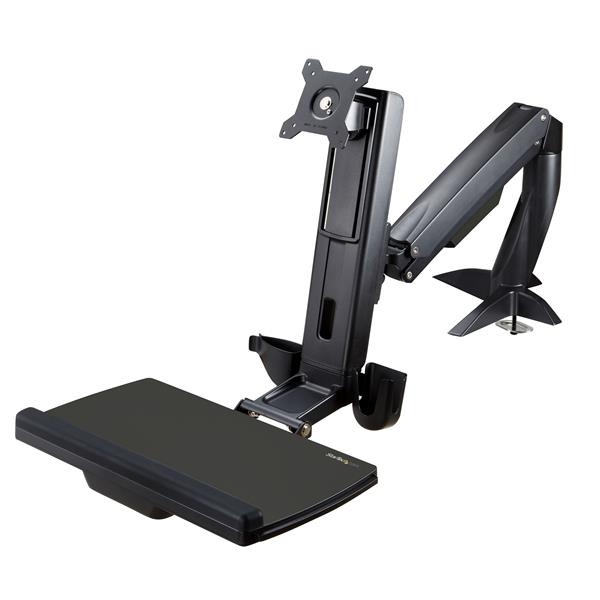

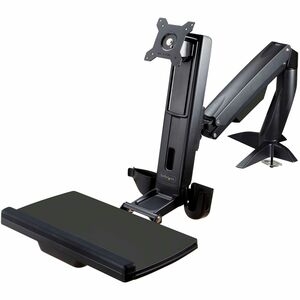

Startech Sit Stand Monitor Arm - Up To 24in Monitors - Height Adjustable - Vesa Mount - Monitor
QUICK OVERVIEW
Overview
This sit-stand monitor arm transforms your desk or tabletop into an ergonomic workstation. The monitor arm features a keyboard tray and easy height adjustment that lets you alternate between sitting and standing, without interrupting your workflow. Move your workstation up or down, left or right, to meet your needs.
Adjust the height with one smooth motion
Adjust your position, with one smooth motion. Simply lift the work surface up to 17.7” (450 mm), to elevate both your monitor and keyboard. You can adjust the tension to your own preference. The monitor mount has a separate height adjustment of up to 4.9" (124 mm) along the column.
Optimum adjustability
This sit-stand monitor arm supports one monitor up to 24”. The swing arm swivels from -90° to 90° and tilts from -30° to 65° for ideal viewing. The VESA mount also rotates up to 360° for portrait or landscape orientation.
Ample working space
The monitor arm features a large keyboard tray (17.68 x 8.15”/ 449 x 207 mm) with ample working space. A slide-out tray (8.5 x 8.4" / 217 x 213 mm) holds your mouse, on the left or right.
To make the most of your workspace, you can tuck the monitor arm away when it’s not in use, to free up space. The keyboard tray also folds up to 90°.
Flexible installation
The compact sit-stand monitor arm features a grommet assembly and desk-clamp option, to fit easily into your workspace, including space-limited corners.
The ARMSTSCP1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Hardware | |
# of Displays Supported | 1 |
Cable Management | Yes |
Mounting Options | Desk & Grommet Clamp |
VESA Hole Pattern(s) | 100x100 mm |
75x75 mm | |
Packaging Information | |
Shipping (Package) Weight | 12.4 kg [27.4 lb] |
Performance | |
Display Rotation | 360? |
Height Adjustment | Yes |
Maximum Display Size | 24in |
Swivel / Pivot | +90? / -90? |
Tilt | +35? / -5? |
Weight capacity of monitor arm | Weight capacity of monitor arm: 17.6 lb. (8 kg) Weight capacity of keyboard tray with grommet mount: 5.6 lb. (2.5 kg) Weight capacity of keyboard tray with desk clamp: 3.3 lb. (1.5 kg) |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel, Aluminum and Plastic |
Product Height | 1020 mm [40.2 in] |
Product Length | 666 mm [26.2 in] |
Product Weight | 11.4 kg [25.2 lb] |
Product Width | 1150 mm [45.3 in] |
What's in the Box | |
Included in Package | 2.5 mm hex key |
5 mm hex key | |
6 mm hex key | |
adhesive strip | |
base | |
base pad | |
base plate | |
base screws | |
clamp L bracket | |
clamp screw assembly | |
clamp screws | |
column | |
grommet plate | |
instruction manual | |
keyboard tray | |
keyboard tray cap | |
M4x10 mm screws | |
M6x10 mm screws | |
M6x12 mm screws | |
M6x25 mm screws | |
M6x8 mm screw | |
M8x20 mm screw | |
M8x65 mm screw | |
metal washer | |
monitor arm | |
plastic washer | |
socket driver | |
VESA monitor mount |
