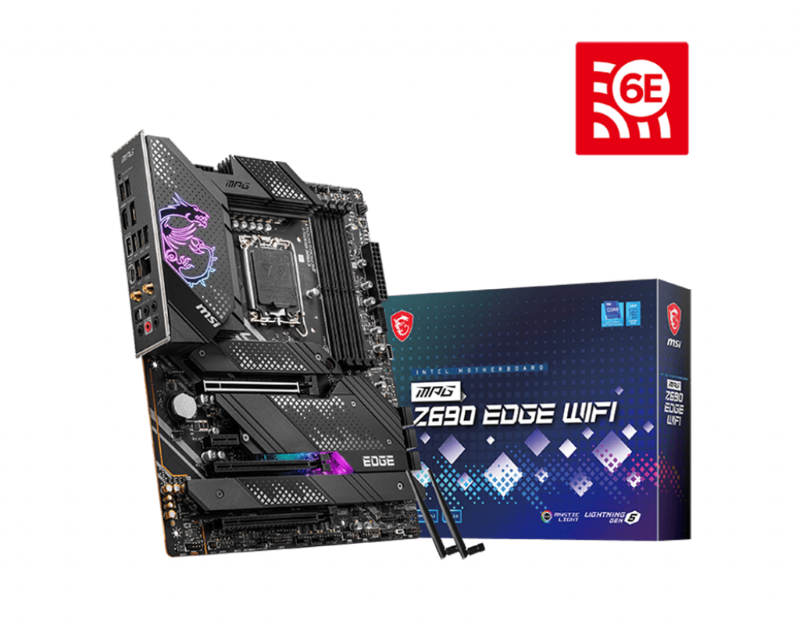

MSI MPG Z690 EDGE WIFI Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready
SKU
378851
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
QUICK OVERVIEW
- ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
Audio
| Audio Channels | 7.1 |
Miscellaneous
| Brand Compatibility | Intel |
Video
| Onboard Video | CPU Dependent Video |
Physical Characteristics
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
I/O Expansions
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| Total Number of PCI Express Slots | 4 |
Network & Communication
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| 2.5Gigabit Ethernet | Yes |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
| Number of Onboard USB 3.2 Ports | 3 |
Memory
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 5200 MHz |
| 4000 MHz | |
| 6133 MHz | |
| 4800 MHz | |
| 5066 MHz | |
| 5800 MHz | |
| 6200 MHz | |
| 6000 MHz | |
| 5333 MHz | |
| 6400 MHz | |
| 5000 MHz | |
| 5600 MHz | |
| 5400 MHz | |
| Intel Optane Memory Ready | Yes |
I/O Controller
| RAID Levels | 0 |
| 1 | |
| 5 | |
| 10 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
General Information
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | MPG Z690 EDGE WIFI |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | Z690 EDGE WIFI |
| Product Name | MPG Z690 EDGE WIFI Desktop Motherboard |
| Product Line | MPG |
| Brand Name | MSI |
Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 5 |
Processor & Chipset
| Processor Supported | Core i9 |
| Celeron | |
| Pentium Gold | |
| Core i5 | |
| Core i7 | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Processor Generation Supported | 12th Gen |
