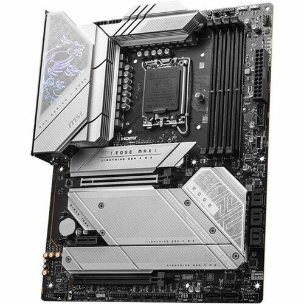

MSI MPG Z790 EDGE TI MAX WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a MPG
SKU
408988
Brand
MPN
MPG Z790 EDGE TI MAX WIFI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $645.00 Regular Price $741.00
Buy Now And Earn 645 Reward Points!
MSI MPG Z790 EDGE TI MAX WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 8 x SATA Interfaces
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
TOOL-FREE M.2 INSTALLATIONIndustrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink- Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
- Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
- Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
- Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSD safe while preventing throttling.
- The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
Features
- Support Intel®Core™ 14th/ 13th/ 12th Gen Processors, Intel®Pentium®Gold and Celeron®Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Guides & Documents
Audio
| Audio Channels | 7.1 |
Miscellaneous
| Brand Compatibility | Intel |
Video
| Onboard Video | CPU Dependent Video |
Physical Characteristics
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
Onboard Interfaces
| Number of SATA Interfaces | 8 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 5 |
I/O Controller
| RAID Levels | 0 |
| 5 | |
| 1 | |
| 10 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Network & Communication
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.4 |
| 2.5Gigabit Ethernet | Yes |
Memory
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 7600 MHz |
| 7800 MHz | |
| 5200 MHz | |
| 5400 MHz | |
| 5600 MHz | |
| 4800 MHz | |
| 5000 MHz | |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 7000 MHz | |
| 7200 MHz | |
| 7400 MHz |
I/O Expansions
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express 4.0 | |
| PCI Express 3.0 | |
| Total Number of PCI Express Slots | 3 |
General Information
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | MPGZ790EDGETIMAXWIFI |
| Manufacturer Website Address | http://au.msi.com |
| Manufacturer | MSI |
| Product Model | Z790 EDGE TI MAX WIFI |
| Product Name | MPG Z790 EDGE TI MAX WIFI Gaming Desktop Motherboard |
| Product Line | MPG |
| Brand Name | MSI |
Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 10 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
Processor & Chipset
| Processor Supported | Celeron |
| Core | |
| Pentium Gold | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Processor Generation Supported | 14th Gen |
| 12th Gen | |
| 13th Gen | |
| 14th Gen | |
| 13th Gen | |
| 12th Gen |
