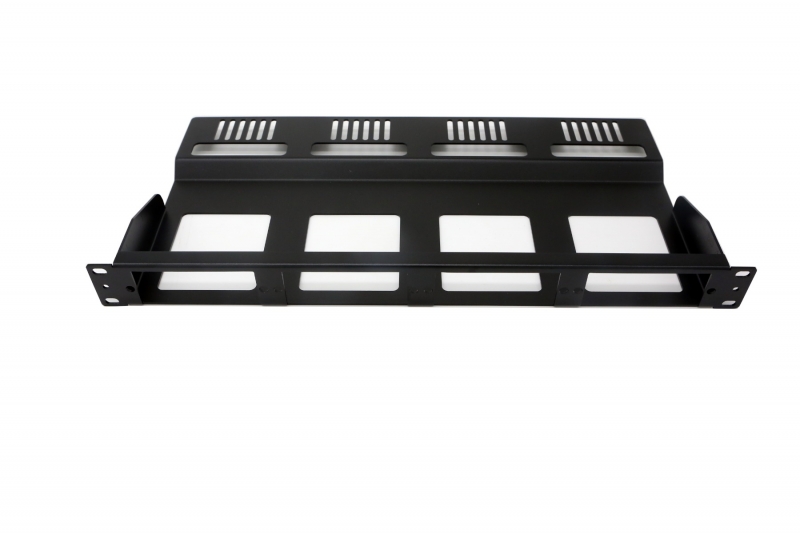

Fibre Patch Panel | 1U Supports 4 Cassettes

The MPO/MTP Cassettes Chassis Panel provides the rapid fibre deployment market with an extremely cost effective, expandable and high speed system. The modular panel and cassettes have been designed to simplify installation and offer users an easy to expand modular system. The modular panels can accept 4 cassettes, which are simply inserted and locked into the panel by push/pull pins. For upgrading or maintenance purposes, cassettes can be easily unlocked and removed from the panel. The cassettes are factory preterminated and available in 6 duplex SC, and 6, 12 or 18 duplex LC options. MPO/MTP connectors simply plug into the rear of the cassette, and inside pre-terminated multiple fiber cable splits out to either LC or SC connectors at the front.

FEATURES
Expandable modular system
1U capacity
4 modular panel options
Reduces installation time and costs
Compact and easily removable cassette
APPLICATION
Optical switching interframe connections
High fibre density card edge access
Array trunk cables
Data Center cabling
SPECIFICATIONS
Width: 482.6mm
Height: 1U
Depth: 1U 233mm
Material: Aluminum
Finish: Fine textured black paint
Capacity: 4 cassettes
Installation: Standard EIA 19" Rack Rails
ACCESSORIES (Not included)
MPO Cassette:
MPO-LC-12A-CASSETTE | MPO CASSETTE 12 Port LC/UPC OM4 (1 x 12 Core MPO-LC) Type A
MPO-LC-12AF-CASSETTE | MPO CASSETTE 12 Port LC/UPC OM4 (1 x 12 Core MPO-LC) Type AF
MPO-LC-12S-CASSETTE | MPO CASSETTE 12 Port LC/UPC OM4 (1 x 12 Core MPO-LC) Customised Type
Cable Management:
MPO-PANEL-1U-CM | Cable Management Suitable for 1U or 3U Fibre Patch Panel
WARRANTY

1-year limited warranty
