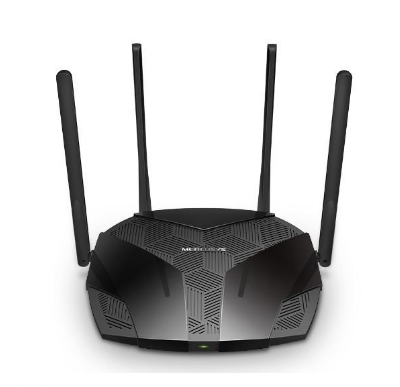

Mercusys MR70X, AX1800 Dual-Band Wi-Fi 6 Router, 5-Year Wty MR70X
SKU
419321
Brand
MPN
MR70X
Warranty
Standard Manufacturer's Warranty
$83.00
Buy Now And Earn 83 Reward Points!
Mercusys MR70X, AX1800 Dual-Band Wi-Fi 6 Router, 5-Year WTY
| EAN | 6957939000509 |
|---|---|
| MPN | MR70X |
| SKU | MR70X |
| UPC | Does Not Apply |
| Bands | Dual-band (2.4 GHz and 5 GHz) |
| Brand | MERCUSYS |
| Model | MR70X |
| Ports | LAN: 3 × Gigabit Ethernet (RJ45) USB: None reported WAN: 1 × Gigabit Ethernet (RJ45) Power: Barrel power jack |
| Weight | 343 g (reported by some sources) |
| Antenna | Gain: 5 dBi Type: Fixed omni-directional external antennas Quantity: 4 |
| Buttons | Reset WPS |
| Hardware | RAM: Not consistently reported LEDs: Single front LED reported Processor: MediaTek MT7621 (reported as dual-core ARM) |
| Dimensions | Metric (W×D×H): 208.8 × 171.6 × 41.7 mm Imperial (W×D×H): 8.2 × 6.8 × 1.6 in |
| WiFi Class | AX1800 |
| Description | The MERCUSYS MR70X is an AX1800 dual-band Wi‑Fi 6 router delivering combined wireless speeds up to 1.8 Gbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz). It supports 802.11ax/ac/a/b/g/n and key Wi‑Fi 6 features including OFDMA, 2x2 MU‑MIMO, Beamforming, BSS Color and Target Wake Time (TWT) for improved capacity, range and power efficiency. Security is enhanced with WPA3. Hardware highlights include 1× Gigabit WAN and 3× Gigabit LAN ports, four fixed external 5 dBi omni antennas, Smart Connect, EasyMesh compatibility and Access Point mode. Package includes router, power adapter, RJ45 Ethernet cable and quick installation guide. |
| WiFi Speeds | 5 GHz: 1201 Mbps 2.4 GHz: 574 Mbps Total (theoretical): Up to 1.8 Gbps |
| Product Title | MERCUSYS MR70X AX1800 Dual-Band Wi‑Fi 6 Gigabit Router |
| Additional Notes | Web-based setup / quick setup wizard (reported) No wall-mount holes reported Market/variant differences exist (multiple firmware/hardware versions V1/V1.20/V2 reported) |
| Package Contents | MR70X AX1800 Wi-Fi 6 Router Power adapter RJ45 Ethernet cable Quick installation guide |
| Storage Humidity | 5% to 90% non-condensing |
| Country of Origin | China |
| Wireless Features | OFDMA MU-MIMO (2x2) Beamforming BSS Color Target Wake Time (TWT) Smart Connect Guest Network AP Isolation Airtime Fairness |
| Wireless Security | WPA-PSK WPA2-PSK WPA3 |
| Operating Humidity | 10% to 90% non-condensing |
| Transmission Power | 5 GHz: < 23 dBm (EIRP) 2.4 GHz: < 20 dBm (EIRP) |
| Wireless Standards | 802.11ax / 802.11ac / 802.11a / 802.11b / 802.11g / 802.11n |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Reception Sensitivity | 11a 6 Mbps: -94 dBm 11g 6 Mbps: -96 dBm 11a 54 Mbps: -76 dBm 11g 54 Mbps: -78 dBm 11n HT20 MCS7: -77 dBm 11n HT40 MCS7: -74 dBm 11ac VHT20 MCS8: -71 dBm 11ac VHT40 MCS8: -68 dBm 11ac VHT80 MCS8: -65 dBm |
| Software / Networking Features | DHCP: Server, DHCP client list Other: Smart Connect, Access Point mode, EasyMesh compatible, QoS/IPv6 support (reported) WAN Types: Dynamic IP / Static IP / PPPoE / L2TP / PPTP Management: Local management, remote management, access control NAT/Firewall: Port forwarding, port triggering, UPnP, DMZ, SPI firewall, IP/MAC binding VPN Passthrough: OpenVPN, PPTP (passthrough) |
Mercusys MR70X, AX1800 Dual-Band Wi-Fi 6 Router, 5-Year WTY
