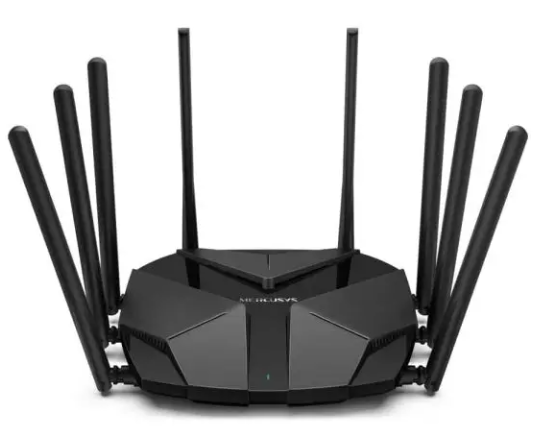

Mercusys MR90X,AX6000 Dual-Band Wi-Fi 6 Router,5-Year Wty MR90X
SKU
405431
Brand
MPN
MR90X
Warranty
Standard Manufacturer's Warranty
$192.00
Buy Now And Earn 192 Reward Points!
Mercusys MR90X,AX6000 Dual-Band Wi-Fi 6 Router,5-Year WTY
| MPN | MR90X |
|---|---|
| SKU | MR90X |
| VPN | Server Supported: [ "OpenVPN", "PPTP" ] |
| Type | Wireless Router |
| Brand | MERCUSYS |
| Color | Black |
| Model | MR90X |
| Antenna | Type: Fixed omni-directional high-gain antennas Quantity: 8 |
| Category | Networking |
| Hardware | Processor: Quad-core 1.6 GHz (as listed) Maximum Devices Supported: Up to 256 devices (as listed) Transmission Power (EIRP): { "2.4 GHz": "< 20 dBm", "5 GHz (band3)": "< 30 dBm", "5 GHz (band1, band2)": "< 23 dBm" } Reception Sensitivity (selected): { "11a 6Mbps": "-97 dBm", "11g 6Mbps": "-97 dBm", "11a 54Mbps": "-79 dBm", "11g 54Mbps": "-79 dBm", "11n HT20 MCS7": "-77 dBm", "11n HT40 MCS7": "-74 dBm", "11ac VHT20 MCS8": "-75 dBm", "11ac VHT40 MCS9": "-71 dBm", "11ac VHT80 MCS9": "-67 dBm", "11ax VHT20 MCS11": "-67 dBm", "11ax VHT40 MCS11": "-64 dBm", "11ax VHT80 MCS11": "-61 dBm" } |
| Management | Features: [ "Access Control", "Parental Controls", "Guest Network (2.4 GHz & 5 GHz)", "QoS", "DHCP Server / Client List", "Multi-Mode (Router / Access Point)" ] App Management: MERCUSYS mobile app (iOS/Android) Local Management: Web (HTTP/HTTPS) Remote Management: Supported Default Service Ports: { "DNS": "53/TCP & 53/UDP", "Web (HTTP)": "80/TCP", "DHCP Server": "67/UDP", "Web (HTTPS)": "443/TCP", "App management": "20001/TCP, 20002/UDP" } |
| Description | The MERCUSYS MR90X is an AX6000 8‑stream Wi‑Fi 6 router that delivers up to 6 Gbps total wireless throughput (4804 Mbps on 5 GHz + 1148 Mbps on 2.4 GHz). Designed for dense home and small-office environments, MR90X features a 2.5 Gbps multi‑gig RJ45 port, additional gigabit ports, 8 high‑gain omni‑directional antennas with beamforming, 4×4 MU‑MIMO, OFDMA, 160 MHz channels and 1024‑QAM for higher capacity and farther coverage. It includes WPA3 security, Smart Connect, BSS Coloring, Target Wake Time (TWT), a quad‑core 1.6 GHz processor (supports up to 256 devices), and flexible management via the MERCUSYS app or web (HTTP/HTTPS). Package includes the MR90X router, power adapter, quick installation guide and an RJ45 Ethernet cable. |
| Identifiers | ASIN: B0BQV3KQ1F |
| Manufacturer | MERCUSYS |
| Sub-Category | Routers and Components |
| Environmental | Storage Humidity: 5%–90% non-condensing Operating Humidity: 10%–90% non-condensing Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Product Title | MERCUSYS MR90X AX6000 8-Stream Wi‑Fi 6 Router (2.5Gbps Multi‑Gig) |
| Wireless Speeds | 5 GHz: 4804 Mbps 2.4 GHz: 1148 Mbps Total (marketing): Up to 6 Gbps |
| NAT / Forwarding | Port Forwarding Port Triggering UPnP DMZ |
| Package Contents | MR90X AX6000 8-Stream Wi‑Fi 6 Router Power Adapter Quick Installation Guide RJ45 Ethernet Cable |
| WiFi Technologies | 4x4 MU-MIMO OFDMA Beamforming BSS Coloring Smart Connect Target Wake Time (TWT) 160 MHz channels 1024-QAM |
| Interfaces / Ports | 1: 1 × 2.5 Gbps RJ45 port (WAN/LAN configurable) 2: 1 × Gigabit RJ45 port (WAN/LAN configurable) 3: 2 × Gigabit RJ45 LAN ports Other: Power input, Reset / WPS button |
| Wireless Standards | IEEE 802.11ax / 802.11ac / 802.11a / 802.11b / 802.11g / 802.11n |
| WAN Types Supported | Dynamic IP Static IP PPPoE L2TP PPTP |
| Other Notes / Features | Smart Connect automatically assigns devices to the best band Supports BSS Coloring to reduce interference from neighboring networks Single Internet-status LED (as reported in video review) |
| Physical Specifications | Weight: 7 oz (≈198 g) (as listed on one source) Dimensions (mm): 209 × 172.2 × 42.4 Dimensions (inches): 8.2 × 6.8 × 1.6 |
| Model Version / Firmware | V1, V1.20 (versions listed) |
| WiFi Class / Marketing Name | AX6000 / 8-Stream Wi‑Fi 6 |
| Firewall / Security Features | SPI Firewall IP & MAC Address Binding WPA / WPA2-Personal WPA2 / WPA3-Personal |
Mercusys MR90X,AX6000 Dual-Band Wi-Fi 6 Router,5-Year WTY
