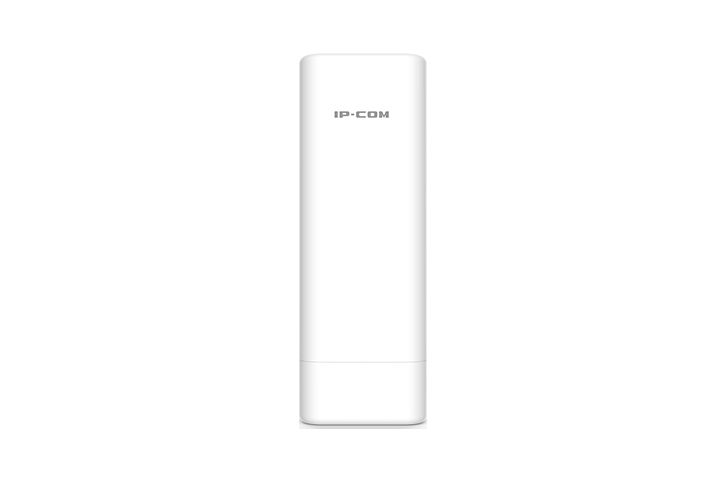

Ip-Com (Ms-5Ac) 5GHz 10km 867Mbps Point To Point Outdoor Cpe, 6kv Lightning Protection MS-5AC
SKU
399990
Brand
MPN
MS-5AC
Warranty
Standard Manufacturer's Warranty
$143.00
Buy Now And Earn 143 Reward Points!
IP-COM MS-5AC 5GHz 10km 867Mbps Point to Point Outdoor CPE
• 5GHz 11AC 867Mbps
• One Gigabit Ethernet Port
• Maximum Transmission Range 10km
• Antenna Beamwidth: Horizontal: 30° Vertical: 30°
• IP65 waterproof enclosure
• 6kv Lightning Protection
• Multiple Power Supply Method: PoE 802.3af/at, 24V 0.5A Passive PoE or 12V/1A DC
• Automatic Pairing
• Smart Signal Indicator LED
• IP-COM TDMA Protocol to improve P2MP performance
• -30℃ - 60℃ working temperature
• 5GHz 11AC 867Mbps
• One Gigabit Ethernet Port
• Maximum Transmission Range 10km
• Antenna Beamwidth: Horizontal: 30° Vertical: 30°
• IP65 waterproof enclosure
• 6kv Lightning Protection
• Multiple Power Supply Method: PoE 802.3af/at, 24V 0.5A Passive PoE or 12V/1A DC
• Automatic Pairing
• Smart Signal Indicator LED
• IP-COM TDMA Protocol to improve P2MP performance
• -30℃ - 60℃ working temperature
| SKU | MS-5AC |
|---|---|
| Brand | IP-COM |
| Model | MS-5AC (CPE13, V2.0) |
| Notes | Designed for PtP and PtMP wireless links, CCTV surveillance and WISP scenarios Measured PtP throughput and range depend on environment and deployment |
| Series | ipMAX AC |
| Frequency | 5 GHz |
| Dimensions | 270 x 94.86 x 67.5 mm |
| Management | IP-COM Centralized Management System (CMS) / PC-CPE Controller; remote web access; firmware upgrade; backup/restore configuration |
| Description | Outdoor 5GHz CPE engineered for long-range PtP and PtMP links. 802.11ac (Wave2) radio with up to 867 Mbps wireless rate and a 16 dBi dual-polarized directional antenna delivers stable links beyond 10 km. Supports ipMAX TDMA for improved P2MP performance, iLink auto-bridge for one-step setup, and multiple operating modes (AP/Station/WISP/Repeater/Router). Rugged IP65 enclosure, 6000V lightning protection, 1x Gigabit Ethernet port, and flexible power options (802.3af/at PoE, 24V passive PoE, 12V DC). Managed via IP-COM CMS / PC-CPE Controller. Includes PoE adapter and quick installation guide. |
| Dynamic DNS | noip dyndns.org |
| PoE Support | 802.3af/802.3at PoE Passive PoE 24V 0.5A |
| Antenna Gain | 16 dBi |
| Antenna Type | Directional, dual-polarized |
| Reset Button | 1 |
| Default Login | IP: 192.168.2.1 Password: admin Username: admin |
| Product Title | IP-COM MS-5AC (CPE13) 5GHz 16dBi ipMAX AC Gigabit Outdoor CPE |
| Certifications | FCC CE RoHS |
| Ethernet Ports | 1 x Gigabit Ethernet (10/100/1000 Mbps) |
| LED Indicators | PoE/LAN, LED1, LED2, LED3 |
| PtP Throughput | Up to 450+ Mbps (measured PtP) |
| Datasheet Links | https://cdn1.npcdn.net/userfiles/25252/attachment/4792379/20240104_f30b1733d5b2d787e57b065a7408931c/MS-5AC_Datasheet.pdf https://resources.seadan.com.au/resources/products/ICMCPE13/attachments/ICMCPE13_CPE13_datasheet_1.pdf |
| Operating Modes | AP Station WISP Repeater Router |
| Enclosure Rating | IP65 |
| Package Contents | 1 x 5 GHz 16 dBi ipMAX AC Gigabit Outdoor CPE 1 x PoE power adapter / injector 1 x Quick installation guide |
| Storage Humidity | 10% to 90% non-condensing |
| Antenna Beamwidth | Vertical: 30° Horizontal: 30° |
| Channel Bandwidth | 20 / 40 / 80 MHz |
| Power Consumption | 6.5 W |
| Wireless Security | WEP (64/128) WPA-PSK WPA2-PSK WPA & WPA2-PSK |
| Wireless Standard | IEEE 802.11a/n/ac (802.11ac Wave2) |
| Operating Humidity | 10% to 90% non-condensing |
| Transmission Power | Adjustable by 1 dBm steps |
| Transmission Range | 10+ km |
| Compliant Standards | IEEE 802.11a IEEE 802.11n IEEE 802.11ac |
| Networking Features | Transparent bridge VLAN tagging for SSID DHCP server VPN pass-through (PPTP, L2TP) Wireless client isolation SSID hidden Client limitation per SSID Weak signal client limitation Wireless access control |
| Storage Temperature | -40 °C to 70 °C |
| Lightning Protection | 6000 V |
| Receiver Sensitivity | 11ac MCS9: -62 dBm ±1.5 dBm 11a 6 Mbps: -91 dBm ±1.5 dBm 11n MCS7 HT20: -72 dBm ±1.5 dBm |
| Maximum Wireless Rate | 867 Mbps |
| Mounting / Deployment | Pole or wall mount |
| Operating Temperature | -30 °C to 60 °C |
| Additional Power Options | 12V 1A DC input |
| Diagnostics & Maintenance | Ping, Traceroute, Signal Scan Ping watchdog Schedule reboot System log Username management Page timeout |
| Quality of Service / Multimedia | WMM capable APSD capable QoS |
| Proprietary Protocols / Features | ipMAX (IP-COM TDMA proprietary protocol) iLink auto-bridge |
IP-COM (MS-5AC) 5GHz 10km 867Mbps Point to Point Outdoor CPE, 6kv lightning protection
