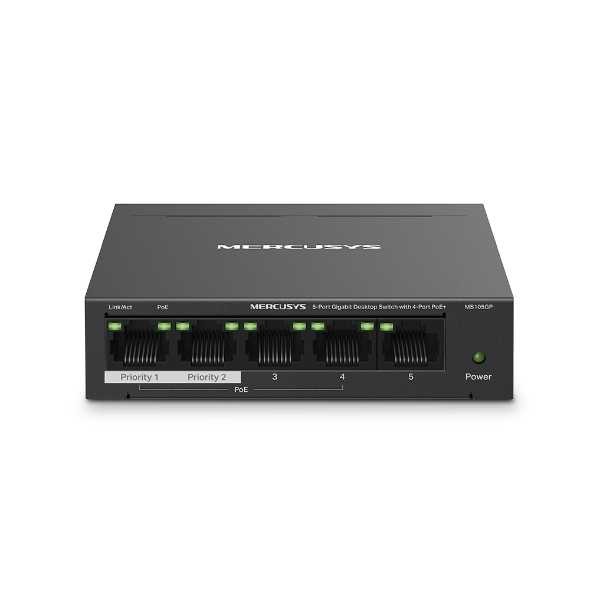

Mercusys MS105GP, 5-Port Gigabit Desktop Switch With 4-Port PoE+, 5 Yrs. Limited Warranty MS105GP
SKU
402618
Brand
MPN
MS105GP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$56.00
Buy Now And Earn 56 Reward Points!
Mercusys MS105GP, 5-Port Gigabit Desktop Switch with 4-Port PoE+, 5 yrs. limited warranty
| SKU | MS105GP |
|---|---|
| Brand | MERCUSYS |
| Color | Black |
| Model | MS105GP |
| Notes | Extend Mode increases PoE transmission distance up to 250 m but reduces link speed to 10 Mbps; actual PoE budget and transmission distance vary with powered device consumption and cable quality. |
| Category | Networking |
| Features | Plug and Play 4 PoE+ ports (ports 1–4) Extend Mode: long-range PoE up to 250 m (link speed reduced to 10 Mbps) Isolation Mode to separate port traffic Recovery Mode Auto-Negotiation Auto MDI/MDIX Fanless, silent operation Durable metal casing |
| Material | Metal housing |
| Warranty | 36 months |
| PoE Ports | 4 |
| Port Type | RJ45 |
| Data Rates | 10/100/1000 Mbps (half duplex); 20/200/2000 Mbps (full duplex) |
| Management | Unmanaged |
| Description | The MERCUSYS MS105GP is an unmanaged 5‑port Gigabit desktop switch with 4 PoE+ ports that deliver up to 30 W per port and a total PoE budget of 65 W. It provides five 10/100/1000 Mbps RJ45 ports (PoE on ports 1–4), plug-and-play operation, a durable metal housing and fanless design for silent operation. Useful features include Extend Mode (extends PoE transmission up to 250 m; link speed reduced to 10 Mbps), Isolation Mode to separate port traffic for stability and security, auto-negotiation/auto MDI/MDIX and basic IEEE Ethernet standards support for simple deployments. Package includes the switch, external power adapter (output 53.5V/1.31A) and Quick Installation Guide. |
| Form Factor | Desktop (wall-mountable) |
| Item Weight | 0.22 kg |
| Jumbo Frame | 9 KB |
| Port Speeds | 10/100/1000 Mbps |
| Switch Type | Unmanaged Gigabit Desktop Switch |
| Installation | Desktop; Wall mountable |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Sub-Category | Switches and Hubs |
| Ports Details | Auto-Negotiation; Auto MDI/MDIX; PoE on ports 1–4 |
| Product Title | MERCUSYS MS105GP — 5‑Port Gigabit Desktop Switch with 4‑Port PoE+ (65W PoE Budget) |
| LED Indicators | Power; Link/Act; PoE Status |
| Number of Ports | 5 |
| Heat Dissipation | 10.64 BTH/h (no PD connected); 255.51 BTH/h (with 65W PD connected) |
| Max PoE per Port | Up to 30 W |
| Package Contents | 5‑Port Gigabit Desktop Switch with 4‑Port PoE+ (MS105GP) Power adapter (external) Quick Installation Guide |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Total PoE Budget | 65 W |
| MAC Address Table | 2K entries |
| Power Consumption | 3.13 W (no PD connected); 75.15 W (with 65W PD connected) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Temperature | -40°C to 70°C |
| External Power Supply | External power adapter (Output: 53.5V / 1.31A) |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x D x H) | 99.8 × 98 × 25 mm |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at; IEEE 802.3x Flow Control |
| Switch Capacity (Backplane) | 10 Gbps |
