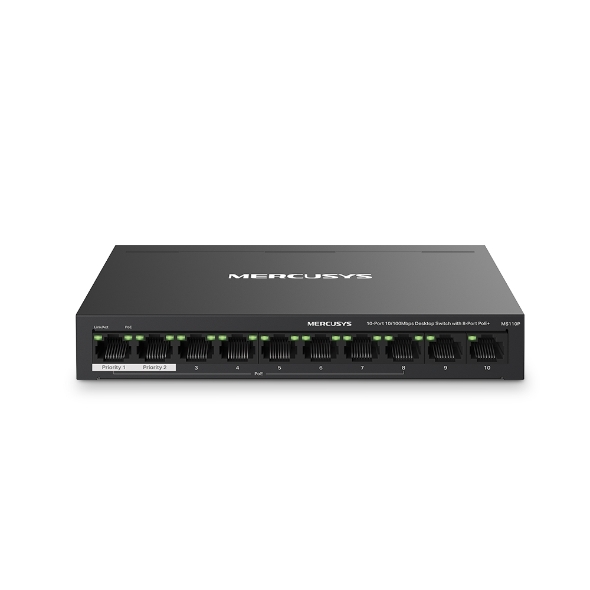

Mercusys MS110P, 10-Port 10/100Mbps Desktop Switch With 8-Port PoE+, 5 Yrs. Limited Warranty MS110P
SKU
401815
Brand
MPN
MS110P
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$65.00
Buy Now And Earn 65 Reward Points!
Mercusys MS110P, 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+, 5 yrs. limited warranty
| SKU | MS110P |
|---|---|
| Brand | Mercusys |
| Model | MS110P |
| Ports | 10 × 10/100 Mbps RJ45 |
| Casing | Durable metal, fanless (silent operation) |
| Category | Networking |
| Features | Plug and Play PoE Auto Recovery Isolation Mode Extend Mode (long-range PoE) Auto-Negotiation Auto MDI/MDIX Silent fanless operation |
| PoE Ports | 8 × PoE+ (ports 1–8) |
| Data Rates | 10/100 Mbps (half); 20/200 Mbps (full) |
| Dimensions | 171 × 98 × 27 mm |
| Description | Compact 10-port 10/100 Mbps desktop switch with 8 PoE+ ports (ports 1–8) delivering up to 30 W per port and a 65 W total PoE budget. Features Isolation Mode (downlink ports communicate only with uplinks), Extend Mode for PoE up to 250 m at reduced speed (10 Mbps), and PoE Auto Recovery to automatically reboot unresponsive PDs. Metal, fanless design for silent operation, plug-and-play setup with auto-negotiation and Auto MDI/MDIX, desktop or wall-mount installation, and an external 53.5 VDC/1.31 A power adapter. |
| Jumbo Frame | 2 KB |
| MAC/EAN/MPN | EAN: 6957939001162 MPN: MS110P |
| Installation | Desktop; Wall-mountable |
| PoE Standard | IEEE 802.3af/at |
| Sub-Category | Switches and Hubs |
| Uplink Ports | 2 × uplink ports (ports 9–10 used as uplinks in Isolation Mode) |
| Product Title | Mercusys MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (65W Budget) |
| Certifications | CE RoHS |
| Isolation Mode | On: downlink ports cannot communicate with each other and only communicate with uplink ports; Off: normal port-to-port data transmission |
| Package Contents | 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P) Power Adapter Quick Installation Guide |
| PoE Max Per Port | Up to 30 W |
| PoE Power Budget | 65 W |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Country of Origin | China |
| Forwarding Method | Store-and-Forward |
| MAC Address Table | 2K entries |
| PoE Auto Recovery | Yes (automatically reboots unresponsive PoE-powered devices) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Switching Capacity | 2 Gbps |
| Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| External Power Supply | Power adapter included; Output 53.5 VDC, 1.31 A; Input 100–240 VAC, 50/60 Hz |
| Max Power Consumption | No PD connected: 2.96 W (220 V / 50 Hz) With 65W PD connected: 77.52 W (220 V / 50 Hz) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3x (Flow Control) CSMA/CD IEEE 802.3af/at (PoE) |
| Extend Mode / Long Range | Up to 250 m PoE transmission in Extend Mode (ports run at 10 Mbps when enabled) |
| Auto Negotiation / Auto MDI/MDIX | Yes |
Mercusys MS110P, 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+, 5 yrs. limited warranty
