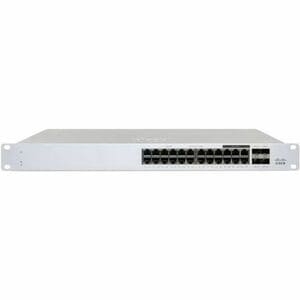

Meraki Ms130-24P Cloud Managed 24GE 370W PoE Switch MS130-24P
SKU
450350
Brand
MPN
MS130-24P
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,552.00
Buy Now And Earn 3552 Reward Points!
Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Form Factor | Rack-mountable |
| Power Consumption | 406 W |
| Brand Name | Cisco Meraki |
| Expansion Slot Type | SFP |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | MS130 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 4 |
| Energy Star® | No |
| TCO Certified | No |
| Manufacturer Part Number | MS130-24P |
| Manufacturer Website Address | http://www.cisco.com/c/en_au |
| Packaged Quantity | 1 |
| Manufacturer | Cisco Systems, Inc |
| Product Model | MS130-24P |
| Product Name | MS130-24P Ethernet Switch |
| Product Series | MS130 |
| Number of SFP Slots | 4 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot, 24 x Gigabit Ethernet PoE+ |
| Network Technology | 1000Base-T, 1000Base-X |
| Maximum Data Transfer Rate | 128 MB/s |
| Application/Usage | Campus, Infrastructure, Network, Branch Office |
| Energy Star | No |
| Networking Standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1Q |
| Weight (Approximate) | 4.04 kg |
| Height | 43.9 mm |
| Width | 254 mm |
| Depth | 439.9 mm |
| Compatible Rack Unit | 1U |
| Product Color | White |
| Color Family | White |
| Input Voltage | 230 V AC, 120 V AC |
| Frequency | 50 Hz, 60 Hz |
| PoE Budget | 370 W |
| MTBF | 768152 Hour |
| Features | DHCP Snooping, Access Control List, Zero-Touch Provisioning (ZTP), DHCP Relay, Built-in Fan, Automatic Firmware Upgrade, VLAN Segmentation |
| Shipping Dimensions | Height 10.7, Width 32, Length 55, Shipping Weight 5.35 KG |
