Startech MSA Uncoded SFP Module SFP1000LHST
SKU
290306
Brand
MPN
SFP1000LHST
Warranty
Standard Manufacturer's Warranty
$123.00
Buy Now And Earn 123 Reward Points!

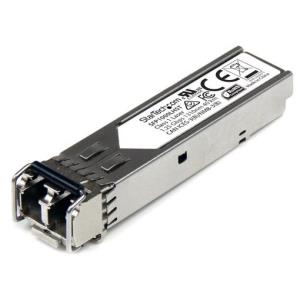

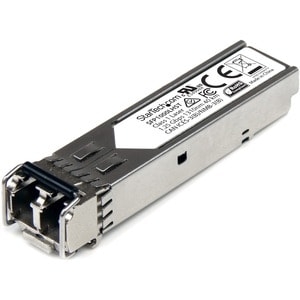

The SFP1000LHST is an MSA compliant fiber SFP transceiver that's designed,
programmed and tested to work with 1000BASE-LH compatible MSA switches and
routers. The SFP transceiver module supports a maximum distance of up to 40 km
(24.8 mi) and delivers dependable 1 GbE connectivity over fiber cabling. Technical
Specifications:
- Wavelength: 1310nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 40 km (24.8 mi)
- Power Consumption: Less than 1 Watt
- DDM: Yes
General Information | |
---|---|
Product Type: | SFP (mini-GBIC) |
Manufacturer Part Number: | SFP1000LHST |
Manufacturer Website Address: | http://www.startech.com/au |
Packaged Quantity: | 1 |
Manufacturer: | StarTech.com |
Product Name: | SFP (mini-GBIC) Module |
Brand Name: | StarTech.com |
Interfaces/Ports | |
---|---|
Interfaces/Ports Details: | 1 x LC Female Duplex 1000Base-LH Network |
Media & Performance | |
---|---|
Network Technology: | 1000Base-LH |
Ethernet Technology: | Gigabit Ethernet |
Media Type Supported: | Optical Fiber |
Fiber Mode Supported: | Single-mode |
Physical Characteristics | |
---|---|
Weight (Approximate): | 17 g |
Height: | 12.7 mm |
Width: | 15.2 mm |
Depth: | 66 mm |
Technical Information | |
---|---|
Application/Usage: | Optical Network |
Data Networking |
Marketing Text | This 1000Base-LH SFP module delivers what you need most in your network connections: reliable performance. Its built to exacting MSA specifications and fully tested to ensure seamless compatibility. |
PI Date | Feb 2018 |
Brand Name | Startech |
Manufacturer Web Site | http://www.startech.com |
Form Factor | SFP |
Product Type | Transceiver |
Cable Type | Single Mode Fiber (SMF) |
Connector | Duplex LC |
Maximum Transmission Distance | 40000meter |
Wavelength | 1310nm |
Depth (mm) | 67.0 |
Height (mm) | 12.0 |
Width (mm) | 14.0 |
Weight (Grams) | 18.0 |
Other Features | * Industry Standards: IEEE 802.3z 1000BASE-LH * Fiber Operating Mode: Full-Duplex * Maximum Data Transfer Rate: 1.25 Gbps * Enclosure Type: Aluminum |
