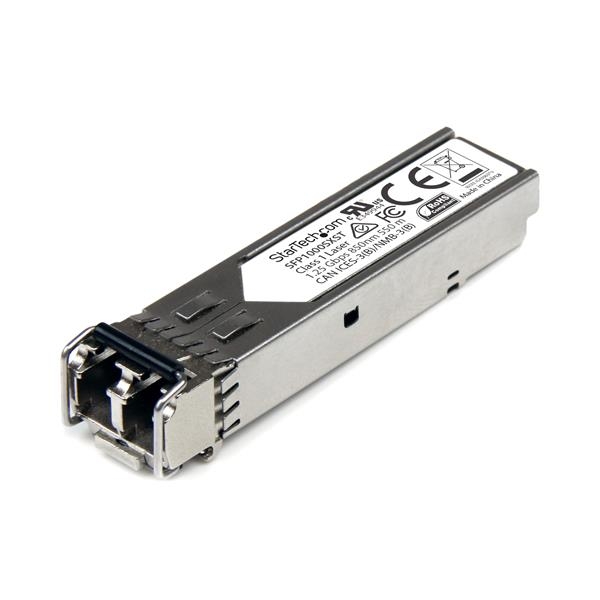

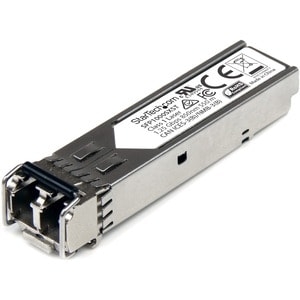

Startech Msa Compliant 1000base-sx Sfp - Gigabit Sfp Module - Ddm / Dom - Multimode Sfp
QUICK OVERVIEW
This 1000Base-SX SFP module delivers what you need most in your network connections: reliable performance. It’s built to exacting MSA specifications and fully tested to ensure seamless compatibility. The multimode SFP transceiver module offers a cost-effective way to add, replace or upgrade the ports on your networking equipment, and it’s backed by a lifetime warranty.
Delivers Gigabit Ethernet connections
With data transfer rates of up to 1Gbps and support for Digital Diagnostics Monitoring (DDM / DOM), this LC SFP module can be installed into fiber networking equipment with an MSA compliant port. It delivers dependable Gigabit connectivity over multimode fiber for 1000Base-SX compliant networks, with a maximum distance of up to 550 m (1804 ft.) and 850 nm optical wavelength.
Built for reliable network performance
This optical transceiver is engineered to meet or exceed the industry’s MSA (Multi-Source Agreement) standards. StarTech.com brings its established reputation for high-quality connectivity solutions to SFP transceivers, providing SFPs that match major OEM brands in performance and reliability. Committed to the highest standards, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.
Convenient and scalable
Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile solution that’s compatible with a wide range of networking equipment, allowing you to expand your network to remote segments cost-effectively.
You can count on SFP1000SXST for reliable performance, backed by a lifetime warranty and free lifetime technical support.
Common Customer Questions
Applications
- Replace defective or damaged SFP modules in MSA compliant equipment
- Ideal for deployment in network devices with multiple SFP slots
- Expand your network to remote segments
Product Numbers
TechData Dis | 12748058 |
ASI Distribution USA | 203764 |
Ingram Micro USA | 1DH571 |
Synnex US | STA-SFP1000SXST |
UPC Code | 065030873352 |
Connector(s) | |
Local Unit Connectors | Fiber Optic LC Duplex Female |
Environmental | |
Humidity | 5~95% RH |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Storage Temperature | -40?C to 85?C (-40?F to 185?F) |
Hardware | |
Compatible Brand | MSA Compliant |
Industry Standards | IEEE 802.3z 1000BASE-SX |
WDM | No |
Packaging Information | |
Shipping (Package) Weight | 53 g [1.9 oz] |
Performance | |
Compatible Networks | 1000 Mbps (1 Gbps) |
DDM | Yes |
Fiber Operating Mode | Full-Duplex |
Fiber Type | Multi Mode |
Max Transfer Distance | 550 m (1804 ft) |
Maximum Data Transfer Rate | 1.25 Gbps |
Wavelength | 850nm |
Physical Characteristics | |
Color | Silver |
Enclosure Type | Aluminum |
Product Height | 12.6 mm [0.5 in] |
Product Length | 58.4 mm [2.3 in] |
Product Weight | 23 g [0.8 oz] |
Product Width | 13.9 mm [0.5 in] |
What's in the Box | |
Included in Package | SFP transceiver |
