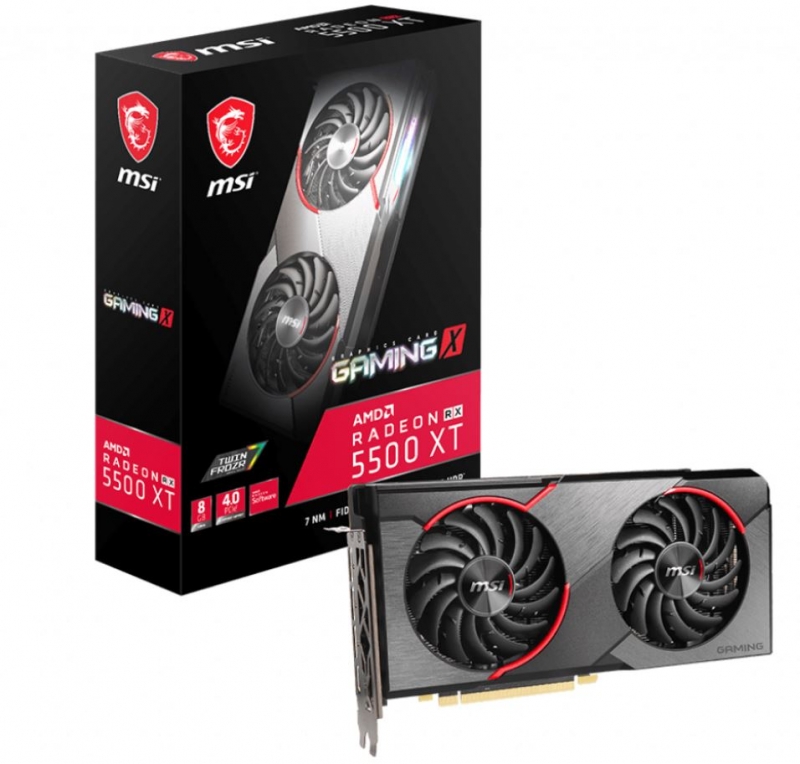

MSI AMD Radeon RX 5500 XT Gaming X 8GB GDDR6 PCIe 4.0 Graphics Card 7680x4320 4xDisplays 3xDP HDMI 1737/1685 MHz TORX FAN3.0

Core / Memory
Boost Clock / Game Clock* / Base Clock / Memory Speed
Up to 1845 MHz / Up to 1737 MHz / 1685 MHz / 14Gbps
8GB GDDR6
DisplayPort x 3 (v1.4) / HDMI 2.0b x 1
TORX FAN 3.0: Supremely silent
Dispersion fan blade: Steeper curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
RGB Mystic Light
Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.
Afterburner Overclocking Utility
Wireless control through Android / iOS devices.
Predator: In-game video recording.
Dragon Center
A consolidated platform that offers all software including MYSTIC LIGHT functionality for your MSI Gaming product.
* 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

Model Name Radeon RX 5500 XT GAMING X 8G
Graphics Processing Unit Radeon™ RX 5500 XT
Interface PCI Express 4.0
Cores 1408 Units
Core Clocks Boost: Up to 1845 MHz
Game: Up to 1737 MHz
Base: 1685 MHz
(Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.)
Memory Speed 14 Gbps
Memory 8GB GDDR6
Memory Bus 128-bit
Output DisplayPort x 3 (v1.4) / HDMI 2.0b x 1
HDCP Support Y
Power consumption 140W (This data is not fixed, it may differ by core clocks.)
Power connectors 8-pin x 1
Recommended PSU 450W
Card Dimension(mm) 247x 128 x 47 mm
Weight (Card / Package) 686g / 998g
DirectX Version Support 12
OpenGL Version Support 4.6
Multi-GPU Technology Y
Maximum Displays 4
VR Ready Y
Digital Maximum Resolution 7680x4320
