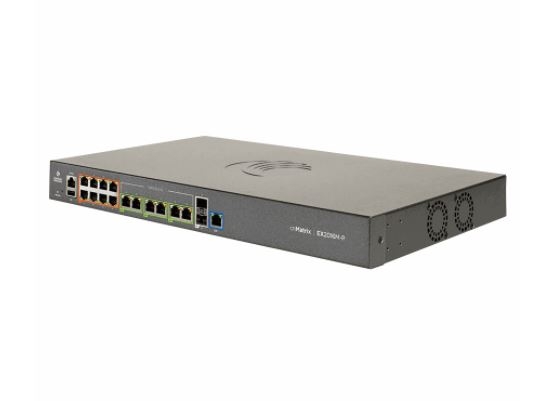

Cambium CnMatrix Ex2016M-P, Intelligent Ethernet PoE+ Switch, 8x1G+6x2.5G+2xSFP+ MXEX2016MxPA00
SKU
307721
Brand
MPN
MXEX2016MxPA00
Warranty
Standard Manufacturer's Warranty
$2,737.00
Buy Now And Earn 2737 Reward Points!
Cambium cnMatrix EX2016M-P, Intelligent Ethernet PoE+ Switch, 8x1G+6x2.5G+2xSFP+, no pwr cord
| SKU | MXEX2016MxPA00 |
|---|---|
| Brand | Cambium Networks |
| Model | EX2016M-P |
| Ports | 8 x 10/100/1000 Mbps (1G), 6 x 2.5 Gbps, 2 x SFP+ (10 Gbps) |
| Weight | 7.94 lb |
| EAN/UPC | 5704174529125 |
| Managed | true |
| Warranty | 5-year limited warranty |
| PoE Budget | 240 W |
| Rack Units | 1U |
| SFP+ Slots | 2 |
| Description | The Cambium Networks cnMatrix EX2016M-P is a cloud-manageable, enterprise-grade Layer 2/Layer 3 PoE switch delivering flexible multi-gig connectivity and advanced automated management. It provides 8 x 10/100/1000 Mbps ports, 6 x 2.5 Gbps ports, and 2 x SFP+ uplink ports in a 1U rack-mountable chassis with non-blocking, line-rate architecture. The platform supports zero-touch deployment, policy-based automation, automated device profiling and segmentation, and can be managed via cnMaestro or XMS. The unit includes PoE support (14 PoE-enabled copper ports), a 240 W PoE budget, 86 Gbps switching capacity, a 5-year limited warranty, and does not include a power cord. |
| Form Factor | Rack-mountable |
| Total Ports | 16 |
| Key Features | Zero-touch deployment Policy-based automation Automated device profiling and segmentation Non-blocking, line-rate architecture Unified wired-wireless access |
| Manufacturer | Cambium Networks |
| Product Line | cnMatrix |
| Product Type | Managed Ethernet Switch |
| Uplink Ports | 2 x SFP+ (10 Gbps) |
| PoE Standards | 802.3af / 802.3at / 802.3bt |
| Product Title | Cambium Networks cnMatrix EX2016M-P Intelligent PoE Ethernet Switch — 8x1G + 6x2.5G + 2x SFP+ (Rack 1U) |
| Product Series | EX2000 |
| Expansion Slots | 2 |
| Layer Supported | 3 |
| PoE Enabled Ports | 14 |
| Network Technology | 1000Base-T 2.5GBase-T 10GBase-X |
| Ethernet Technology | Gigabit Ethernet 2.5 Gigabit Ethernet 10 Gigabit Ethernet |
| Power Cord Included | No |
| Management Platforms | cnMaestro (cloud or on-prem) or XMS |
| Manufacturer Website | http://www.cambiumnetworks.com |
| Media Type Supported | Twisted Pair Optical Fiber |
| Dimensions (H x W x D) | 1.7 in x 17.3 in x 9.8 in |
| Power Input / Connector | IEC 320-C13 |
| Manufacturer Part Number | MXEX2016MxPA00 |
| Power Consumption (switch only) | 26.76 W |
| Switching Capacity / Throughput | 86 Gbps |
Cambium cnMatrix EX2016M-P, Intelligent Ethernet PoE+ Switch, 8x1G+6x2.5G+2xSFP+
