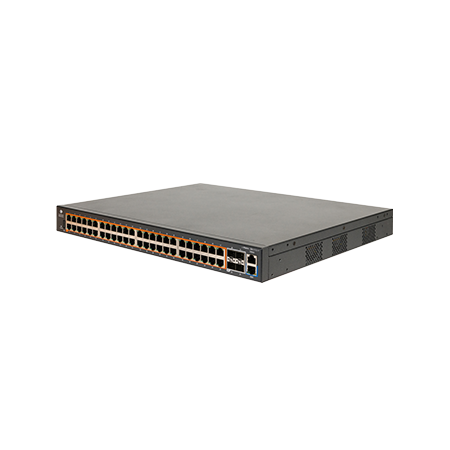

CnMatrix Ex2052-P, Intelligent Ethernet PoE+ Switch, 48 1G And 4 Sfp+ Fixed 540w Psu MXEX2052GxPA00
SKU
307722
Brand
MPN
MXEX2052GxPA00
Warranty
Standard Manufacturer's Warranty
$3,335.00
Buy Now And Earn 3335 Reward Points!
cnMatrix EX2052-P, Intelligent Ethernet PoE+ Switch, 48 1G and 4 SFP+ Fixed 540w PSU
| CPU | 800 MHz |
|---|---|
| MPN | MXEX2052GxPA00 |
| PoE | PoE+ (802.3af/at) — 48 ports PoE-enabled |
| DRAM | 512 MB |
| LAGs | 8 LAGs (8 links per LAG) |
| MTBF | 238,063 hours |
| Brand | Cambium Networks |
| Flash | 128 MB |
| Model | cnMatrix EX2052-P |
| Ports | 48 x 10/100/1000 RJ-45 |
| VLANs | 4K |
| Weight | 5.4 kg (11.90 lb) |
| Category | Networking |
| Warranty | 5-Year Limited Lifetime Warranty |
| Documents | Manufacturer datasheet (cnMatrix EX2000 series) |
| Port Type | RJ-45 / SFP+ |
| Dimensions | 44 x 4.4 x 35 cm (17.3 x 1.75 x 13.78 in) |
| Management | cnMaestro cloud management (or XMS on-prem) Embedded web management (HTTP/HTTPS) CLI / SSH SNMP v1/v2 Out-of-band management port |
| PoE Budget | 400W |
| Power Cord | No power cord (unit typically shipped without power cable) |
| Rack Units | 1U |
| Throughput | 176 Gbps |
| Description | The Cambium Networks cnMatrix EX2052-P is a fully managed, cloud-capable enterprise Ethernet switch delivering Layer 2 and Layer 3 functionality with advanced access security. It provides 48x 10/100/1000 RJ-45 ports with PoE+ (802.3af/at), 4x SFP+ (10 Gbps) uplinks, non-blocking 176 Gbps throughput and a 120 Mpps forwarding rate. The platform supports zero-touch deployment, cnMaestro or XMS management, policy-based automation, device profiling and segmentation, unified wired/wireless integration, and a 5-Year Limited Lifetime Warranty. Rack-mountable 1U design with internal fans, onboard CPU/flash/DRAM for switching features and enterprise routing capabilities. |
| Form Factor | Rack-mountable, 1U |
| PoE Voltage | 54V |
| Switch Type | Managed L2/L3 Ethernet switch |
| Key Features | Zero-touch deployments Policy Based Automation Auto device profiling and segmentation Unified wired/wireless integration Non-blocking, line-rate architecture Cloud or on-prem management (cnMaestro / XMS) |
| Power Supply | Fixed 540W internal power supply; AC input 100-240VAC |
| Sub-Category | Switches and Hubs |
| Uplink Ports | 4 x SFP+ (10 Gbps) |
| Internal Fans | 2 |
| Product Title | Cambium Networks cnMatrix EX2052-P — 48x 1G PoE+ Ports, 4x SFP+ Uplinks (176 Gbps, 400W PoE Budget) |
| Acoustic Noise | 40.9–47.3 dBA (varies by ambient temperature) |
| Alternate MPNs | MXEX2052GXPA00 CMB-MXEX2052GXPA00 |
| Forwarding Rate | 120 Mpps (64-byte packets) |
| Layer-2 Features | 802.1q VLANs, port-based VLANs Spanning Tree (802.1D/W/S) LACP IGMP snooping v1/v2/v3 LLDP/LLDP-MED Port mirroring, port isolation, jumbo frames (9k) |
| Layer-3 Features | Inter-VLAN routing Static routes RIPv1/v2 OSPFv2 DHCP relay |
| Max PoE Per Port | 30W |
| MAC Address Table | 16K entries |
| Security & Access | Policy Based Automation Auto device profiling and segmentation 802.1x authentication RADIUS/TACACS+ DHCP snooping Secure shell (SSH) MAC authentication |
| Operating Humidity | Up to 95% RH (non-condensing) |
| QoS Priority Queues | 8 |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Hardware Limits & Tables | ARP Entries: 512 Static Routes: 64 PVRST Instances: 32 Static ARP Entries: 512 Ingress/Egress ACLs: 128 IGMP Multicast Groups: 256 Dynamic Routing Entries: 512 |
| Temperature Range (Operating) | 0°C to 50°C (32°F to 122°F) |
cnMatrix EX2052-P, Intelligent Ethernet PoE+ Switch, 48 1G and 4 SFP+ Fixed 540w PSU
